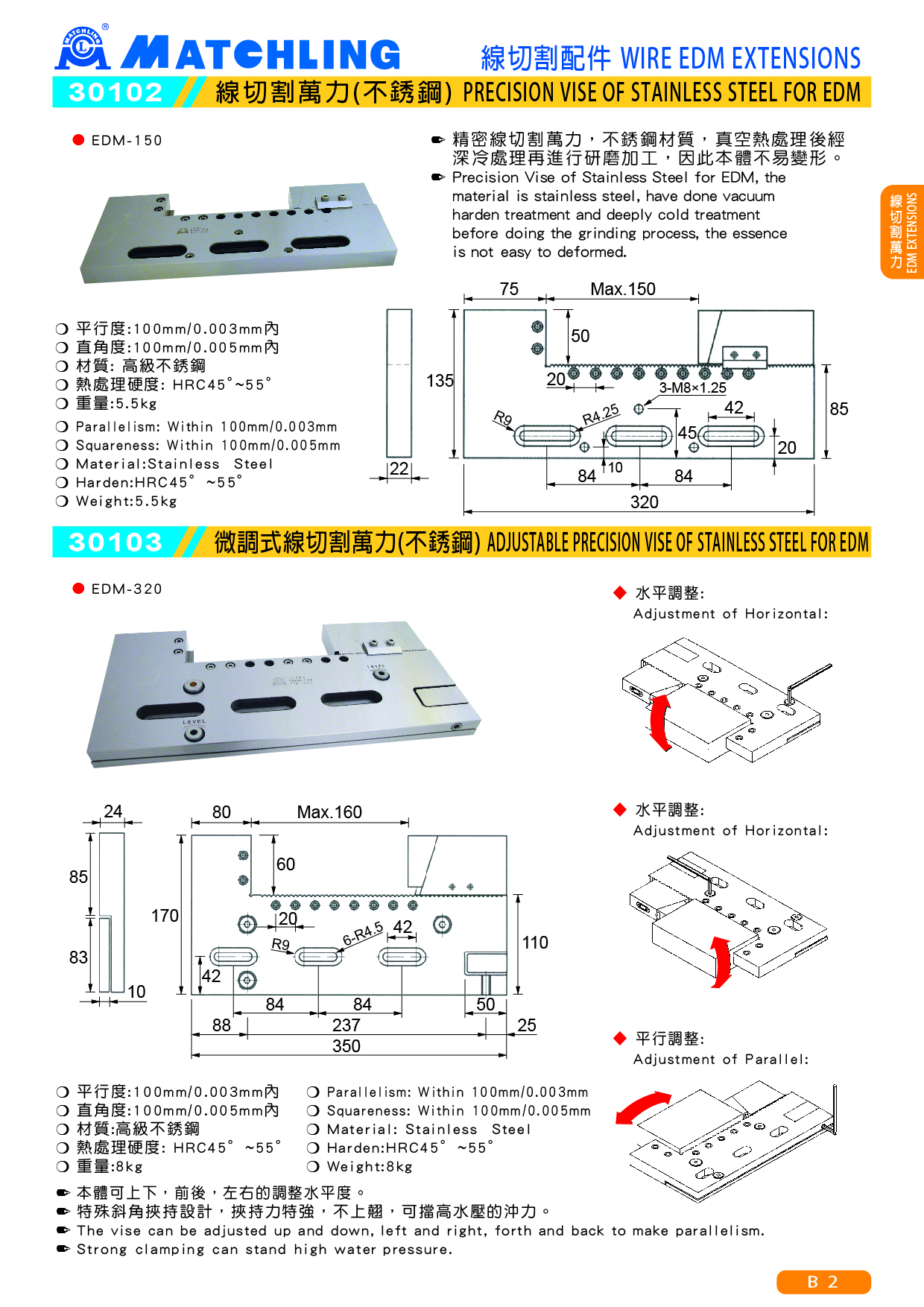

30103 ADJUSTABLE PRECISION VISE OF STAINLESS STEEL FOR EDM

Item Model：EDM-320
Download
Detail

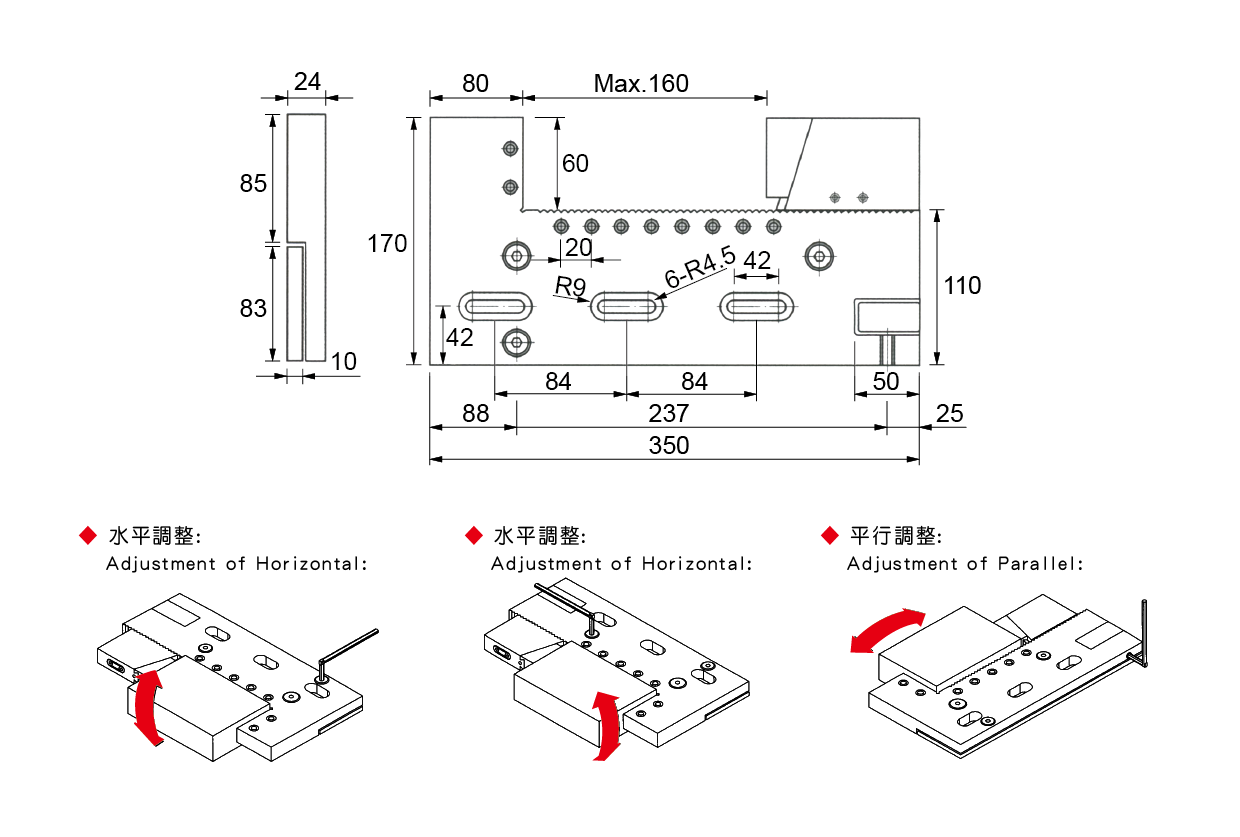

● The vise can be adjusted up and down, left and right, forth and back to make parallelism.
● Strong clamping can stand high water pressure.

■ Feature:
● Parallelism:    Within 100mm/0.003mm
● Squareness:    within 100mm/0.005mm
● Material:Stainless  Steel
● Harden:HRC45°~55°
● Weight:8kg
