Products PUNCH FORMER

  1. PUNCH GRINDER / PUNCH FORMER
  2. PUNCH FORMER

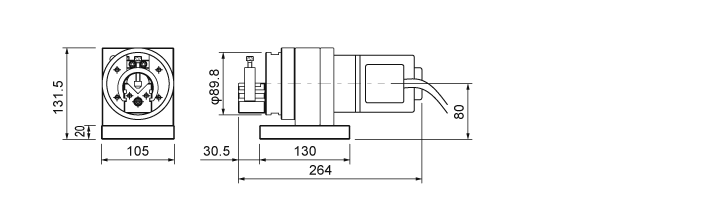

31038 MOTOR PUNCH FORMER

Item Model：MCL-350AB
Download
Detail
  • Motor punch former driven by motor, without     hand manual operation, saving processing time.
■ Specifications:
  • V-block Clamp range: φ3~φ30mm
  • The activities of V-block:Up 24mm/Down 16mm
  • Maximum swing diameter: 200mm
  • The deflection with round rod: under 2μ
  • The deflection with 50mm round rod: under 6μ
■ Accessory:
  1. C type clip-- 1 piece
Order No. Model Motor Speed weight (kg)
31038-15 MCL-350AB*110V 50/60Hz  SINGLE PHASE 50Hz :16~180 R.P.M
60Hz :16~220 R.P.M		 14
31038-20 MCL-350AB*110V 50/60Hz  SINGLE PHASE 14
