- Motor punch former driven by motor, without hand manual operation, saving processing time.

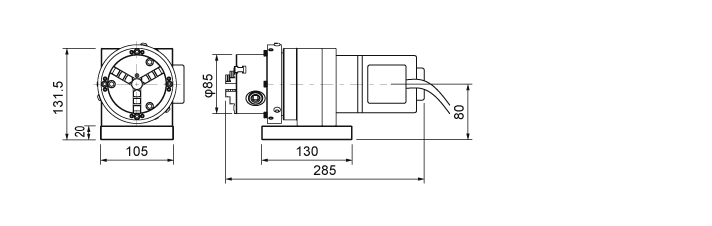

- Swivel center high: 80mm
- Indexing Div: 24(Every 15°)±10"
- 3-Jaws max diameter can pass through: 16mm
- 3-Jaws outer diameter: 85mm、length: 60mm
- Outer clamping gripping diameter: φ2~φ70mm
- Internal clamping gripping diameter: φ24~φ64mm
| Order NO. | Model | Motor | Speed | Weight (kg) |
|---|---|---|---|---|
| 31058-15 | MCL-550AB*110V | 50/60Hz SINGLE PHASE | 50Hz :16~180 R.P.M 60Hz :16~220 R.P.M |
12 |
| 31058-20 | MCL-550AB*220V | 50/60Hz SINGLE PHASE | 12 |
MCL-550AB×110V MCL-550AB×220V
