● Adjustment design function user can adjust the horizontal and center.
● ER collet specifications please refer order no. 37066~37070.
■ Specifications:

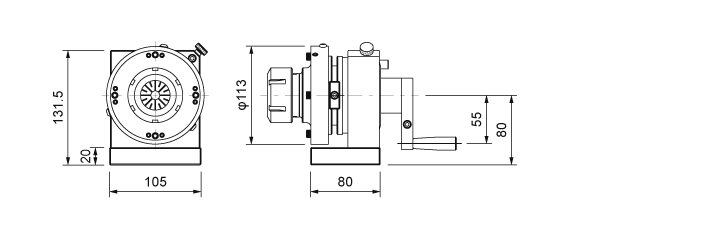

● Swivel center high 80mm
● Indexing Div: 24(Every 15°)±10 seconds
● The body max diameter pass through: φ16mm
| Order NO. | Model | Clamping Range | Collet Set Size | Weight (kg) |
|---|---|---|---|---|
| 31065-32 | MCL-650-ER32 | φ2 ~ φ20 | φ6 φ8 φ10 φ12 φ16 φ20 | 10 |
| 31065-40 | MCL-650-ER40 | φ3 ~ φ26 | φ6 φ8 φ10 φ12 φ16 φ20 | 10.5 |
| 31065-50 | MCL-650-ER50 | φ10 ~ φ34 | φ6 φ8 φ10 φ12 φ16 φ20 φ25 | 11 |
