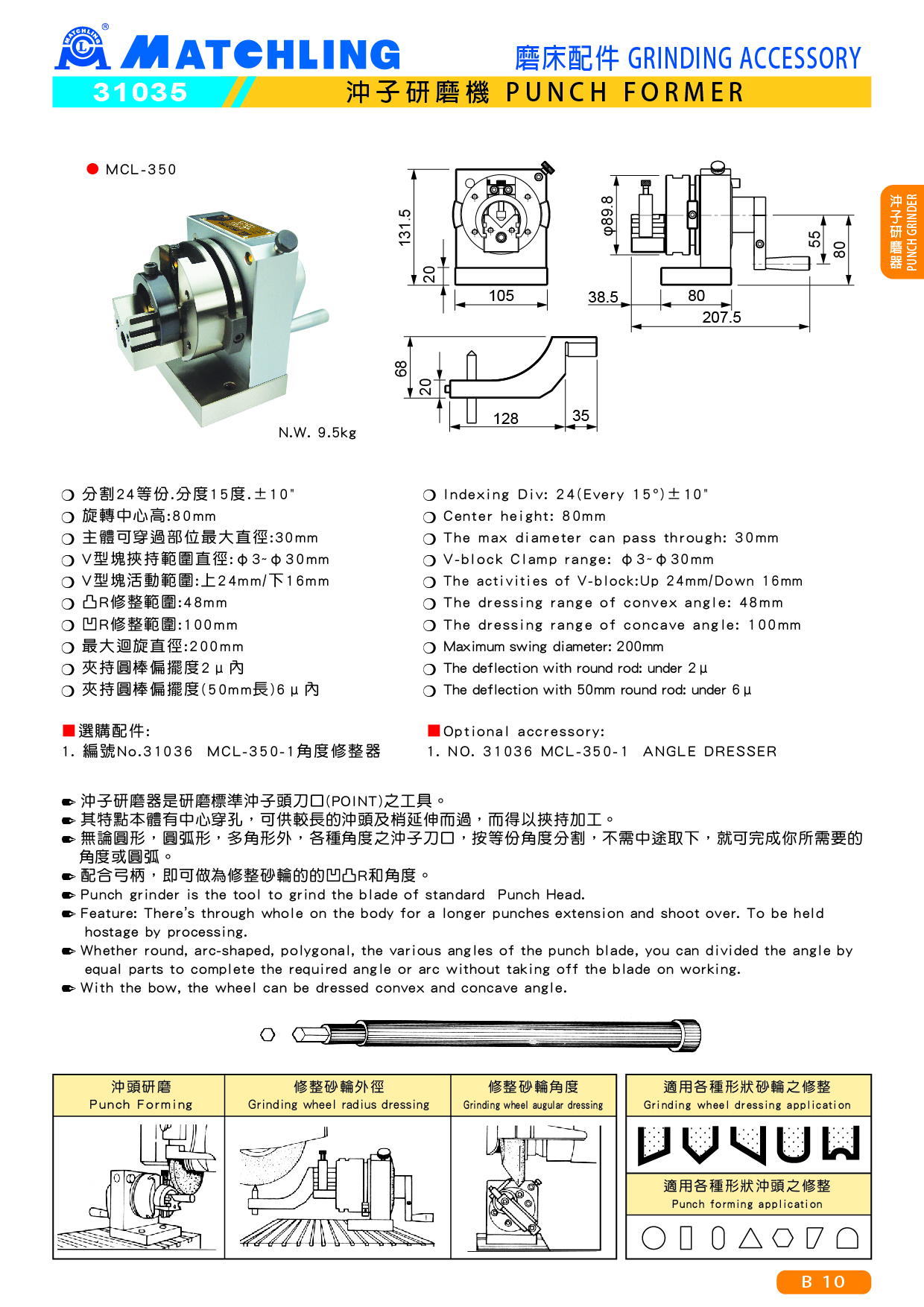

- Punch grinder is the tool to grind the blade of standard Punch Head.
- Feature: There’s through whole on the body for a longer punches extension and shoot over. To be held hostage by processing.

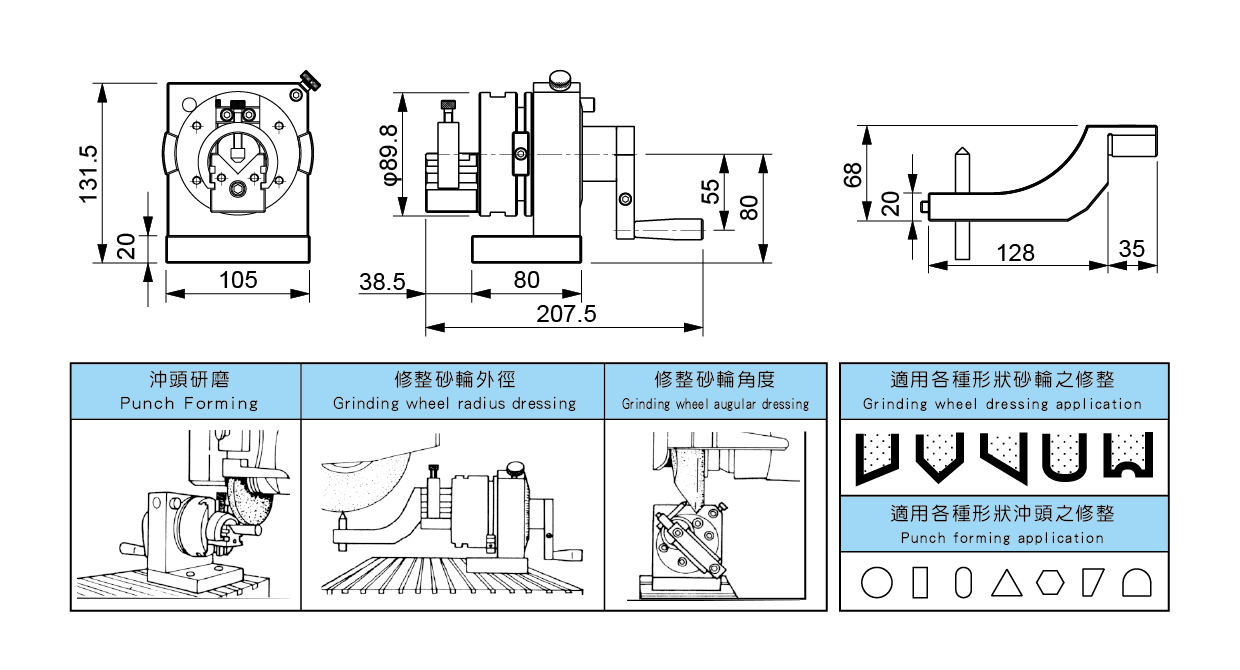

- Whether round, arc-shaped, polygonal, the various angles of the punch blade, you can divided the angle by equal parts to complete the required angle or arc without taking off the blade on working.
- With the bow, the wheel can be dressed convex and concave angle.
- Indexing Div: 24(Every 15°)±10 seconds
- Center height: 80mm
- The max diameter can pass through: 30mm
- V-block Clamp range: φ3~φ30mm
- The activities of V-block:Up 24mm/Down 16mm
- The dressing range of convex angle: 48mm
- The dressing range of concave angle: 100mm
- Maximum swing diameter: 200mm
- The deflection with round rod: under 2μ
- The deflection with 50mm round rod: under 6μ
- Weight:9.5kg
- C type clip--- 1 piece
- Dressing arm handle-- 1 piece
- 10×80L Diamond pen-- 1 piece
- 4mm T type spanner-- 1 piece
- Hexagon type spanner-- 3mm*1 piece.5mm*1 piece
