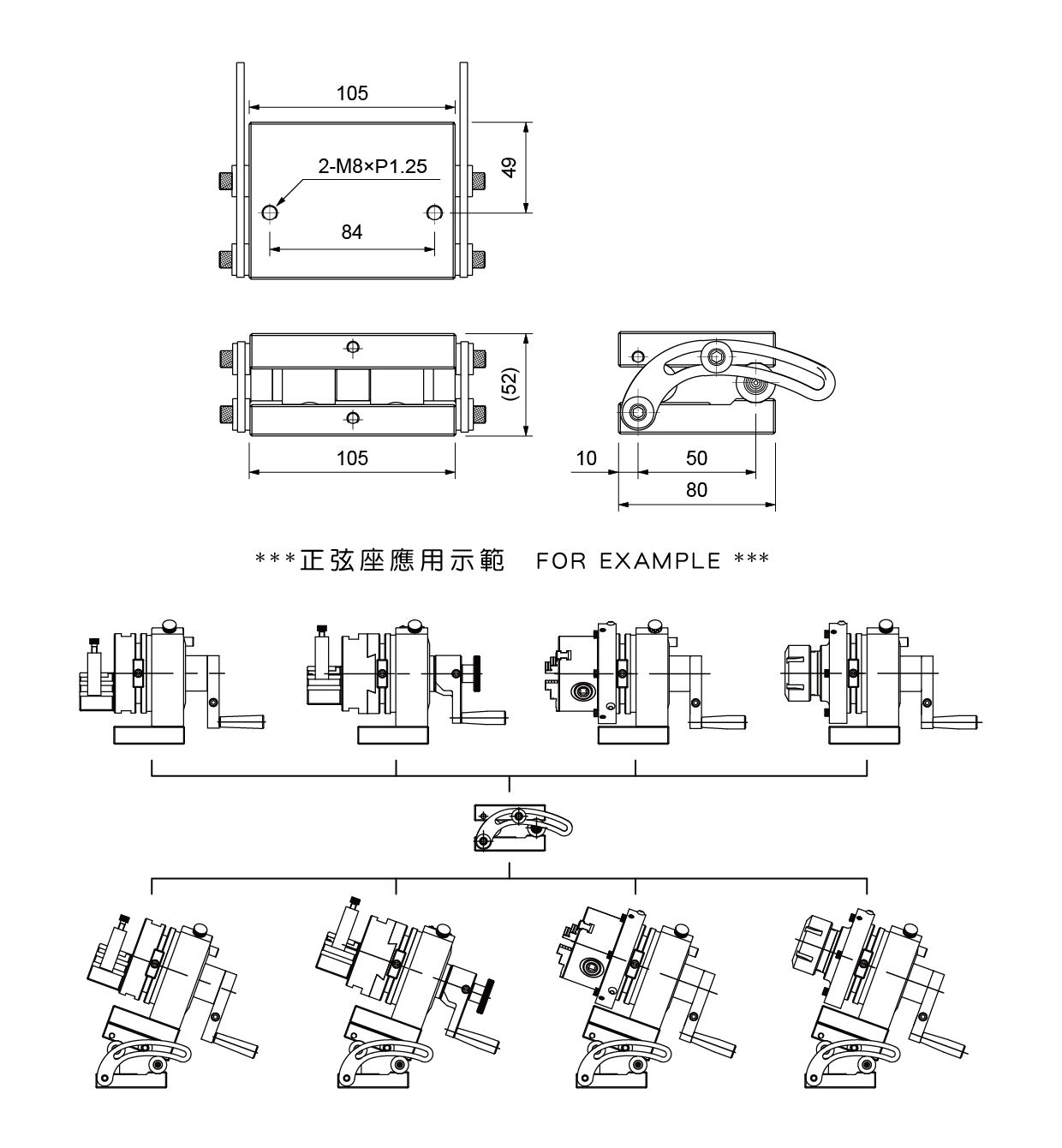

31066 SINE PLATE

Item Model：MCL-C3×4
Download
Detail
● The sine plate can be set with punch former for swiveling     mechanism. It makes your work more efficiency. The unit     is suitable for MCL-350.450.550.650 series.

■ Specifications:
● Material：S50C
● Hardness：HRC55°~57°
● The distance of Sine center：50mm / 4μ
● The adjusted range：0°~50°
● Parallelism is within 4μ
