■ Specifications:

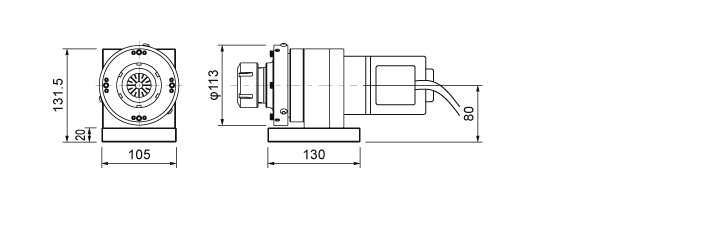

● Swivel center high 80mm
● Indexing Div: 24(Every 15°)±10 seconds
● ER32 collet clamping range: φ2~20mm
● ER40 collet clamping range: φ3~26mm
● ER50 collet clamping range: φ10~34mm
| Order NO. | Model | Motor | Speed | Clamping Range | Collet Set Size |
|---|---|---|---|---|---|
| 31068-15 | MCL-650-ER32AB*110V | 50/60Hz SINGLE PHASE | 50Hz :16~180 R.P.M 60Hz :16~220 R.P.M |
φ2 ~ φ20 | φ6 φ8 φ10 φ12 φ16 φ20 |
| 31068-20 | MCL-650-ER32AB*220V | 50/60Hz SINGLE PHASE | φ2 ~ φ20 | φ6 φ8 φ10 φ12 φ16 φ20 | |
| 31068-35 | MCL-650-ER40AB*110V | 50/60Hz SINGLE PHASE | φ3 ~ φ26 | φ6 φ8 φ10 φ12 φ16 φ20 φ25 | |
| 31068-40 | MCL-650-ER40AB*220V | 50/60Hz SINGLE PHASE | φ3 ~ φ26 | φ6 φ8 φ10 φ12 φ16 φ20 φ25 | |
| 31068-55 | MCL-650-ER50AB*110V | 50/60Hz SINGLE PHASE | φ10 ~ φ34 | φ12 φ14 φ16 φ20 φ26 φ32 | |
| 31068-60 | MCL-650-ER50AB*220V | 50/60Hz SINGLE PHASE | φ10 ~ φ34 | φ12 φ14 φ16 φ20 φ26 φ32 |
