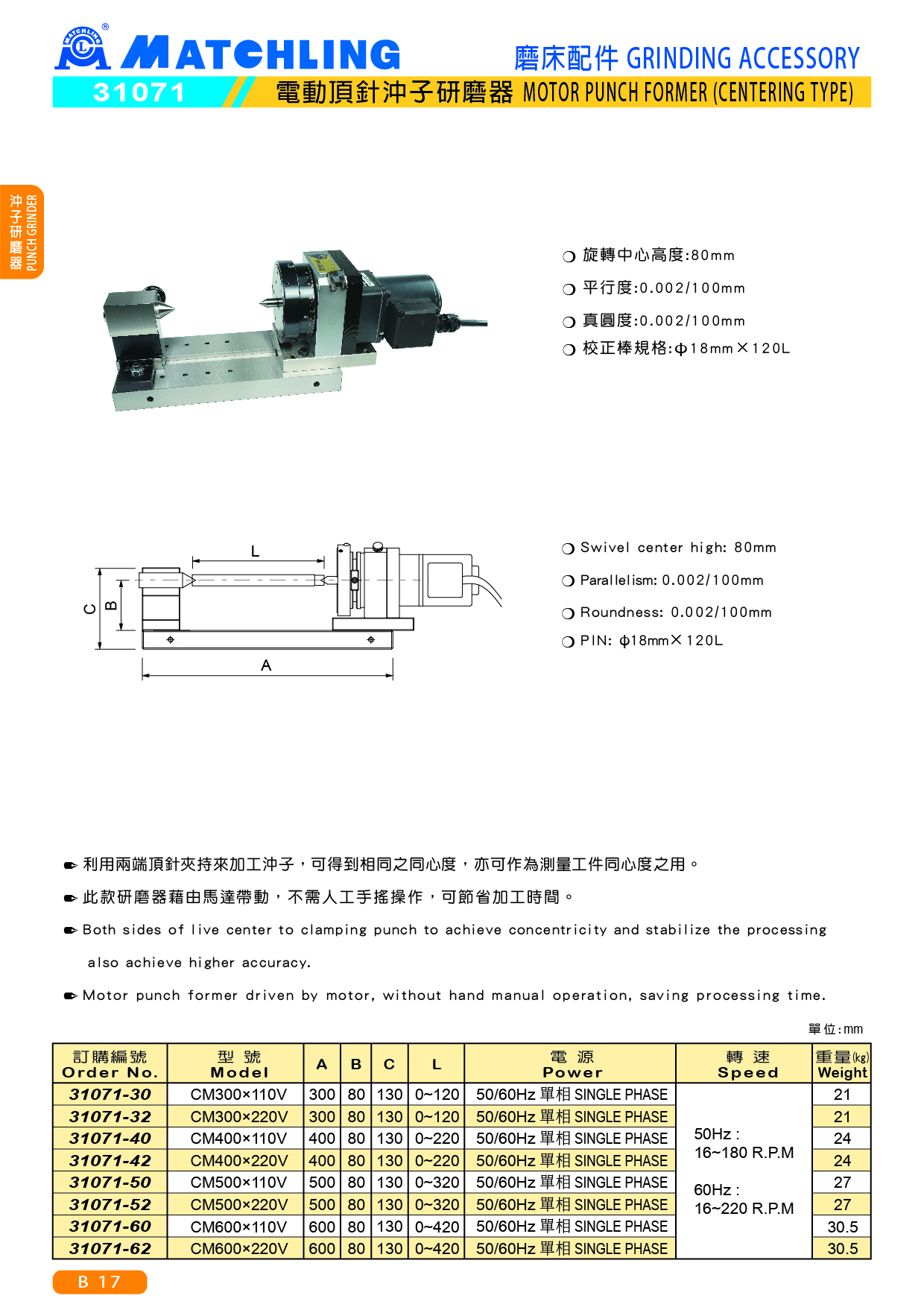

31071 MOTOR PUNCH FORMER (CENTERING TYPE)

Item Model：HWF-CM
Download
Detail
● Both sides of live center to clamping punch to achieve concentricity and stabilize the processing also achieve higher accuracy.
● Motor punch former driven by motor, without hand manual operation, saving processing time.

■ Specifications:
● Swivel center high: 80mm
● Indexing Div: 24(Every 15°)±10"
● Parallelism: 0.002/100mm
● Roundness: 0.002/100mm

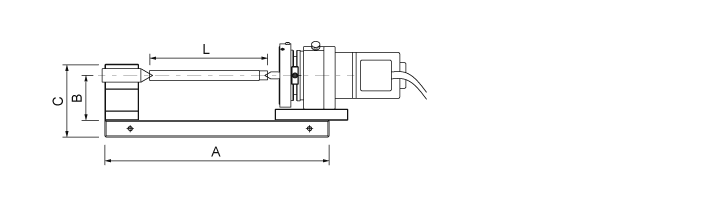

Order No. Model A B C L Motor Speed Weight (kg)
31071-30 CM300*110V 300 80 130 0 ~ 120  50/60Hz
SINGLE PHASE		 50Hz : 16~180 R.P.M 60Hz : 16~220 R.P.M 21
31071-32 CM300*220V 300 80 130 0 ~ 120 21
31071-40 CM400*110V 400 80 130 0 ~ 220 24
31071-42 CM400*220V 400 80 130 0 ~ 220 24
31071-50 CM500*110V 500 80 130 0 ~ 320 27
31071-52 CM500*220V 500 80 130 0 ~ 320 27
31071-60 CM600*110V 600 80 130 0 ~ 420 30.5
31071-62 CM600*220V 600 80 130 0 ~ 420 30.5
