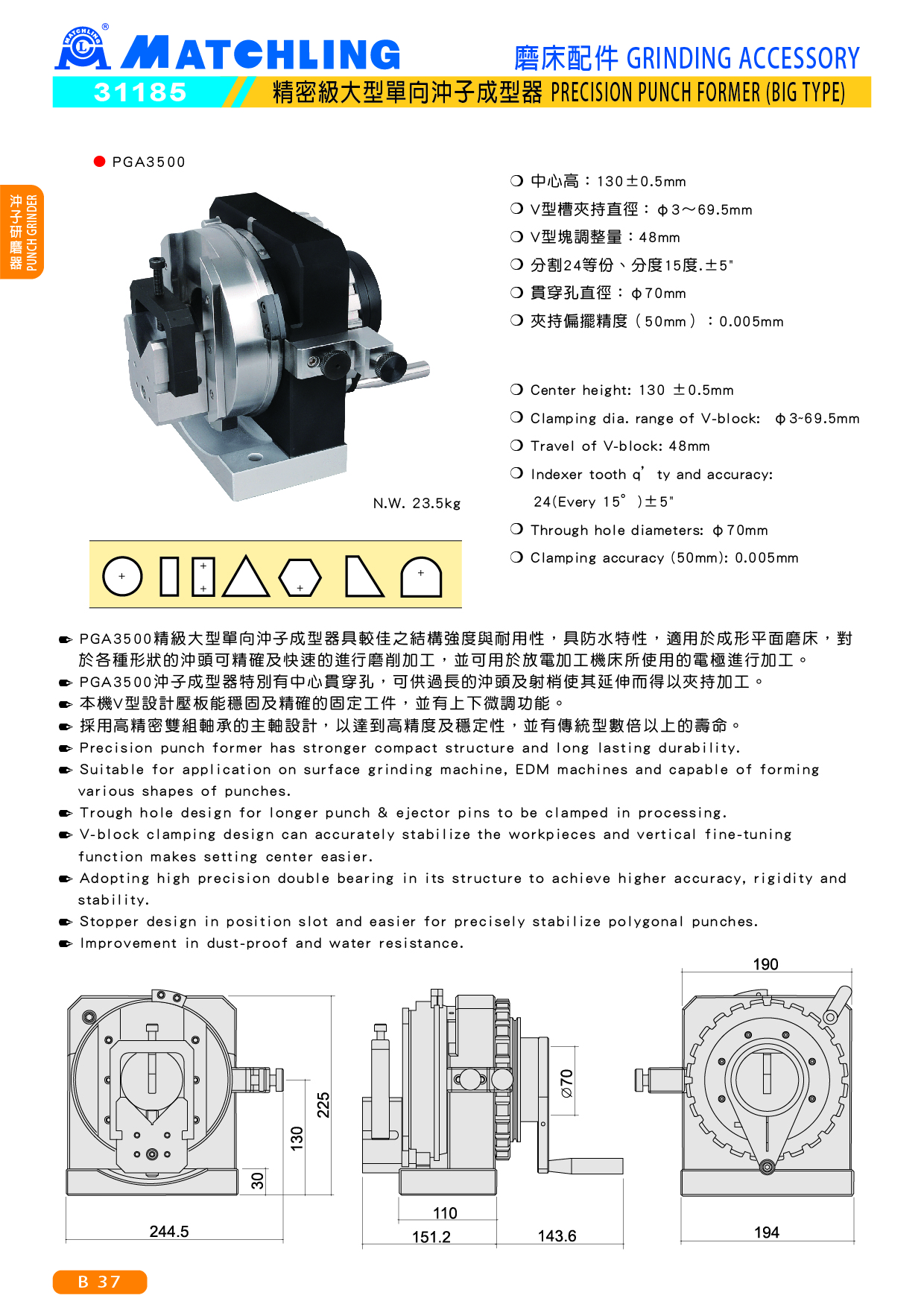

● Suitable for application on surface grinding machine, EDM machines and capable of forming various shapes of punches.
● Trough hole design for longer punch & ejector pins to be clamped in processing.
● V-block clamping design can accurately stabilize the workpieces and vertical fine-tuning function makes setting center easier.
● Adopting high precision double bearing in its structure to achieve higher accuracy, rigidity and stability.
● Stopper design in position slot and easier for precisely stabilize polygonal punches.
● Improvement in dust-proof and water resistance.
● V block is not made of stainless steel.

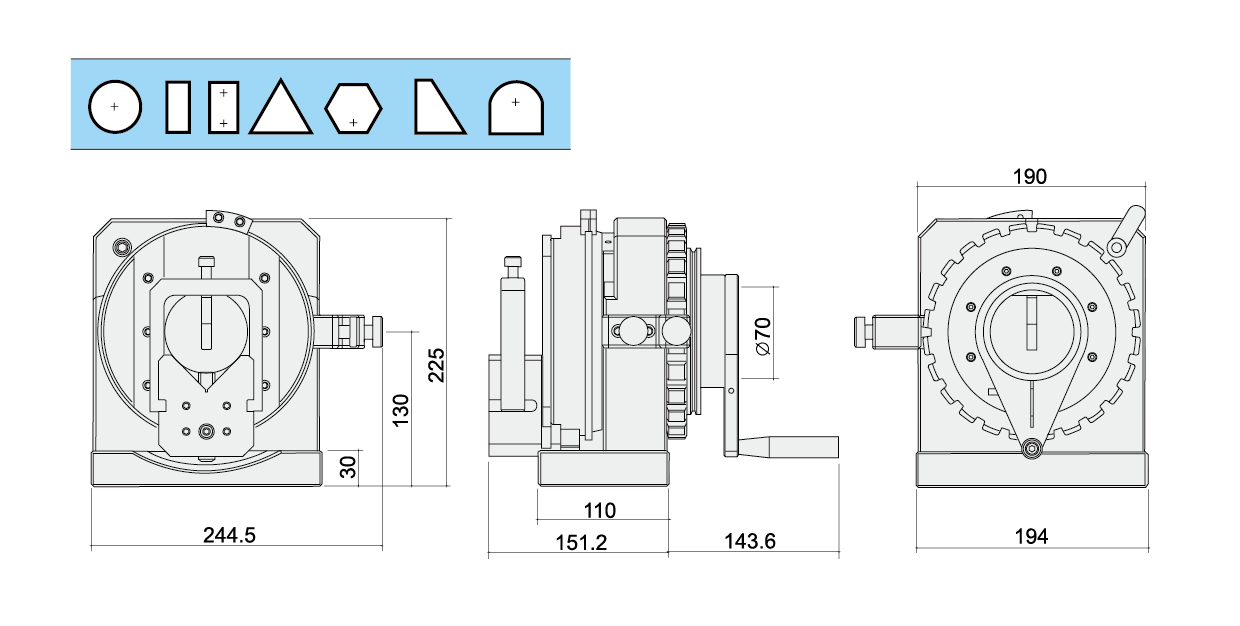

■ Specifications:
● Center height: 130 ±0.5mm
● Clamping dia. range of V-block: φ3~69.5mm
● Travel of V-block: 48mm
● Indexer tooth q’ty and accuracy: 24(Every 15°)±5"
● Through hole diameters: φ72mm
● Clamping accuracy (50mm): 0.005mm
