● Provide rapid clamping and it suitable for mass production workpiece with round shaped can precisely and rapidly clamped.
● Further jaw attachment can clamp workpiece with larger diameters.
● Adopting high precision double bearings in its structure to achieve higher accuracy, rigidity and stability.

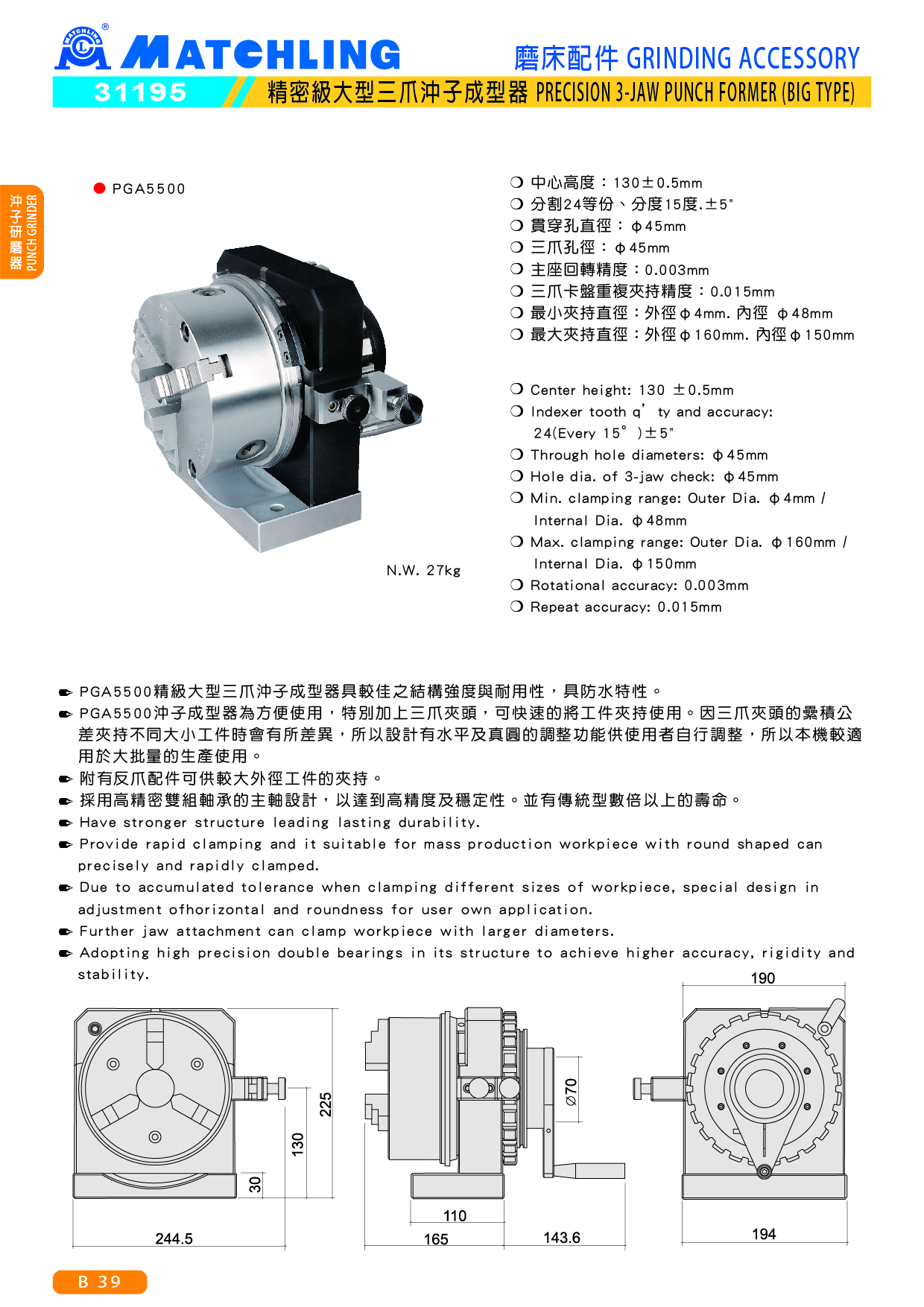

■ Specifications:
● Center height: 130 ±0.5mm
● Indexer tooth q’ty and accuracy: 24、15φ±5”
● Through hole diameters: φ45mm
● Hole dia. of 3-jaw check: φ45mm
● Min. clamping range: Outer Dia. φ4mm / Internal Dia. φ48mm
● Max. clamping range: Outer Dia. φ160mm / Internal Dia. φ150mm
● Rotational accuracy: 0.003mm
● Repeat accuracy: 0.015mm
