Products SPANNER VISE

  1. TOOL MAKER VISES
  2. SPANNER VISE

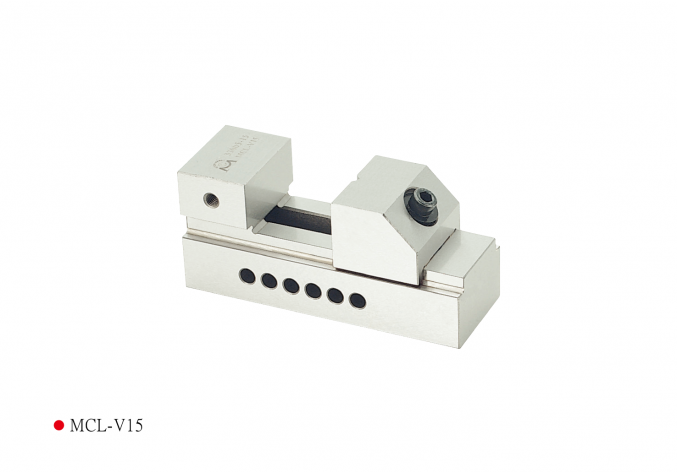

33005 TOOL MAKER VISE(HIGH-LEVEL TYPE)

Item Model：MCL-V__
Download
Detail
● The rotary spring designed, the position can be moved and adjusted easily and fast.
● Single bevel designed, the deformation of the main body can be automatically corrected.
● Parallelism within:0.003MM/100MM. Squareness within:0.005MM/100MM.
● Material:SK2，Hardness:HRC56°±2.

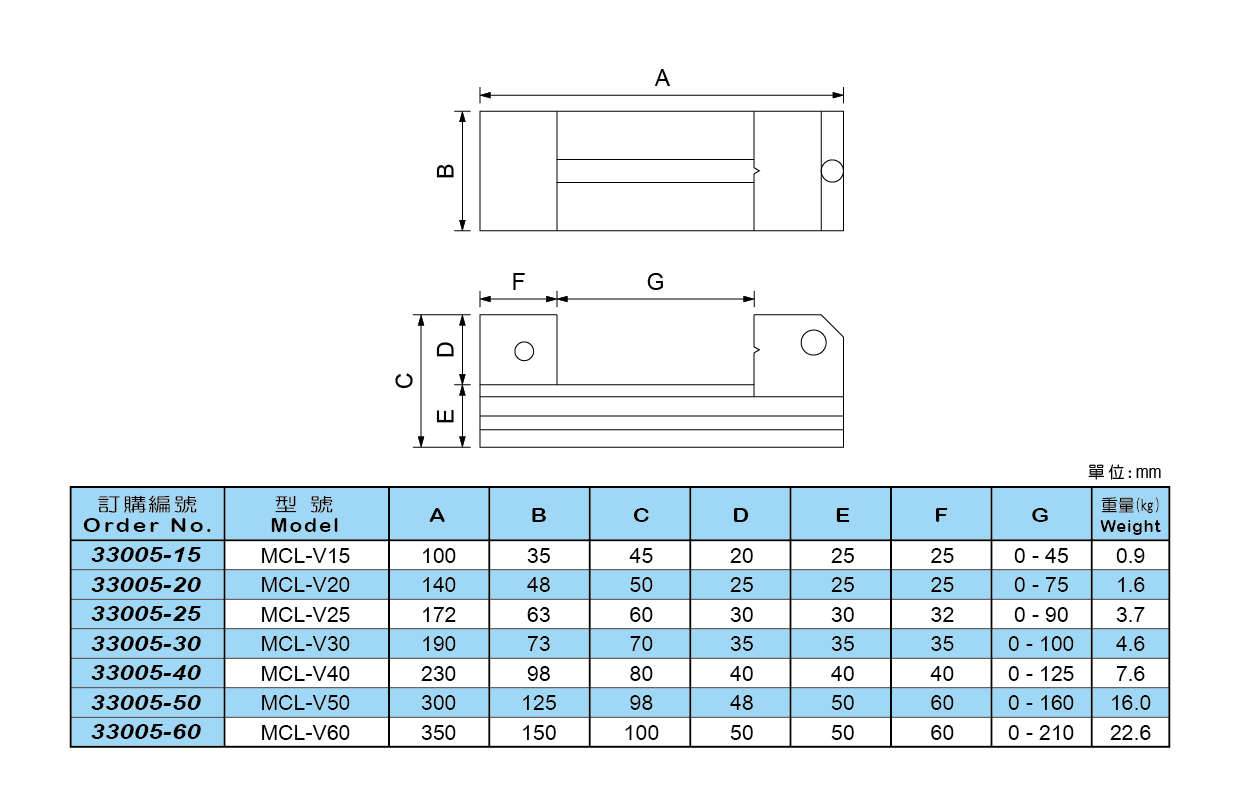

MCL-V15 MCL-V20 MCL-V25 MCL-V30 MCL-V40 MCL-V50 MCL-V60
