33096 STEEL ANGLE PLATES

Item Model：MCL-LB__
Download
Detail
● Made of alloy steel and grinded precision.     Good precision of Straight angle.
● There are screw holes on the panel for     fixing mode and fixture.
● Parallel Precision: 0.003mm /100mm
● Right-angle precision: 0.005mm /100mm
● Material：SK2. Hardness：HRC56°±2

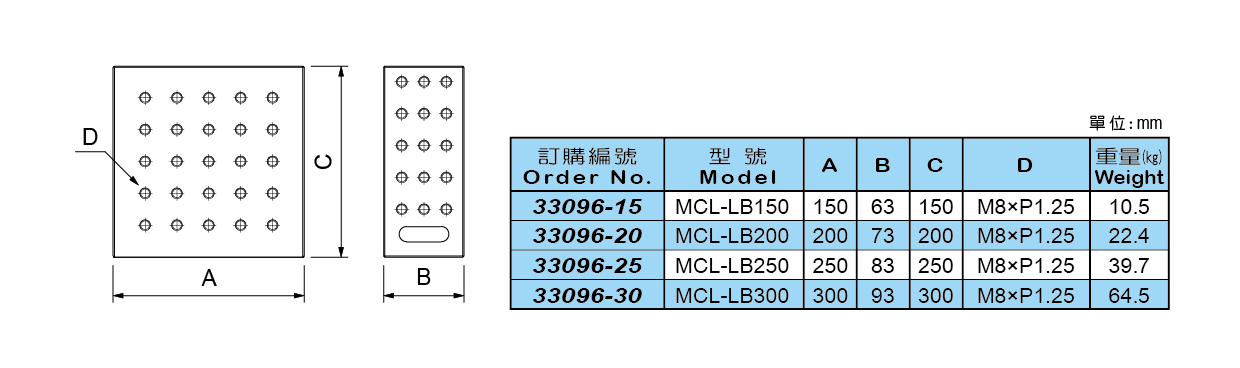

MCL-LB150 MCL-LB200 MCL-LB250 MCL-LB300
