Products V BLOCK / ANGEL PLATES / GROUND PARALLELS / SINE PLATE

Detail
● Sine bars can be measured or corrected the accuracy of angle.

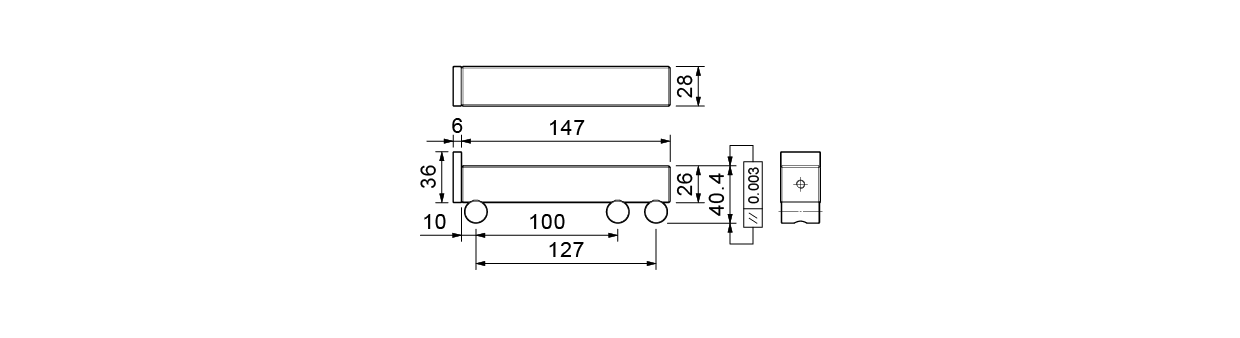

● The distance of center for pad is 100MM, and can be adjusted to 5ʺ .
● Accuracy of center between pad : 0.004mm.
● Parallel Precision:0.003mm.
● Material:YK30.  Hardness::HRC56°±2
● Weight:1kg
