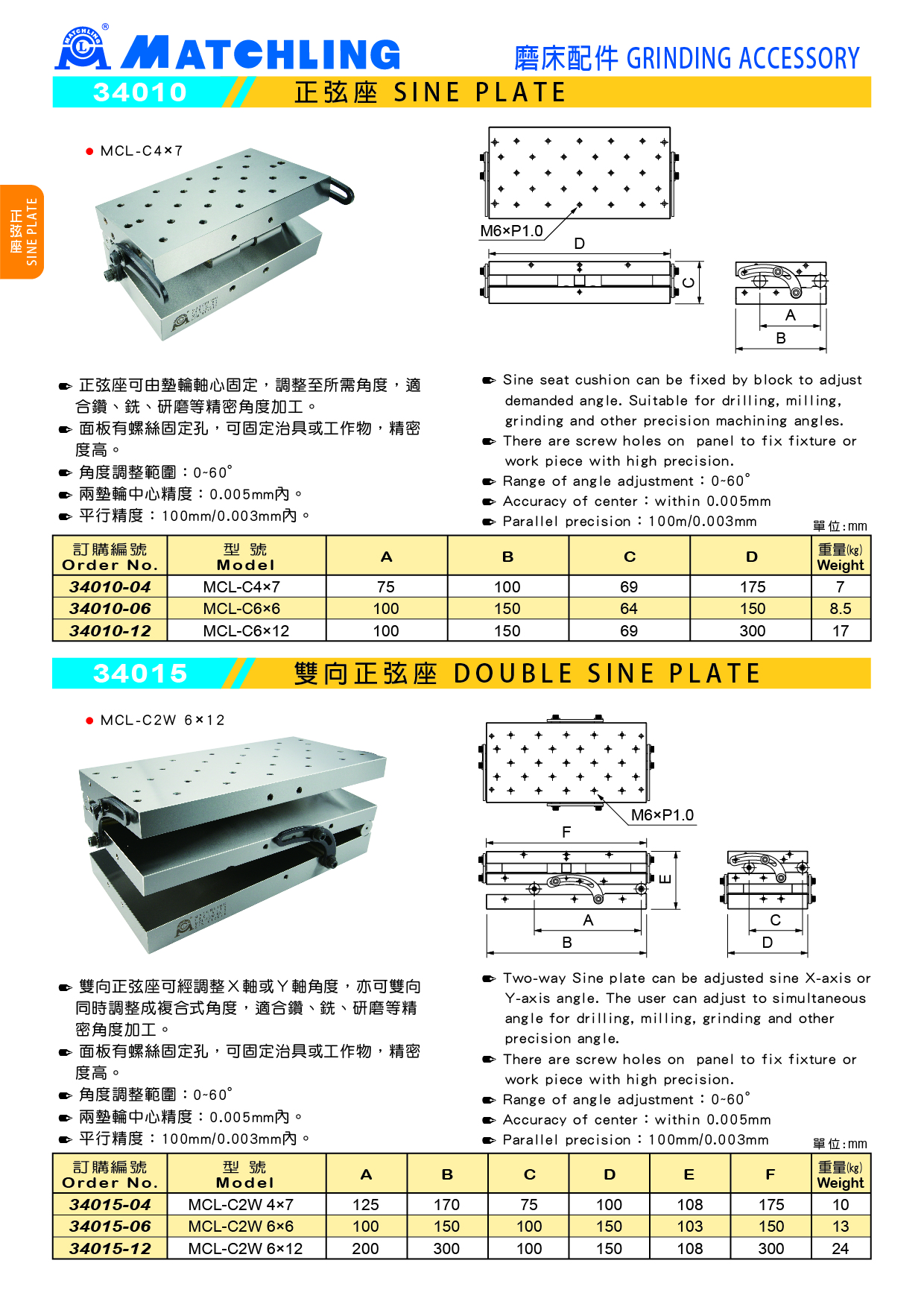

34010 SINE PLATE

Item Model：MCL-C__
Download
Detail
● Sine seat cushion can be fixed by block to adjust demanded angle. Suitable for drilling, milling, grinding and other precision machining angles.
● There are screw holes on  panel to fix fixture or work piece with high precision.
● Range of angle adjustment：0~60°
● Accuracy of center：within 0.005mm
● Parallel precision：100m/0.003mm

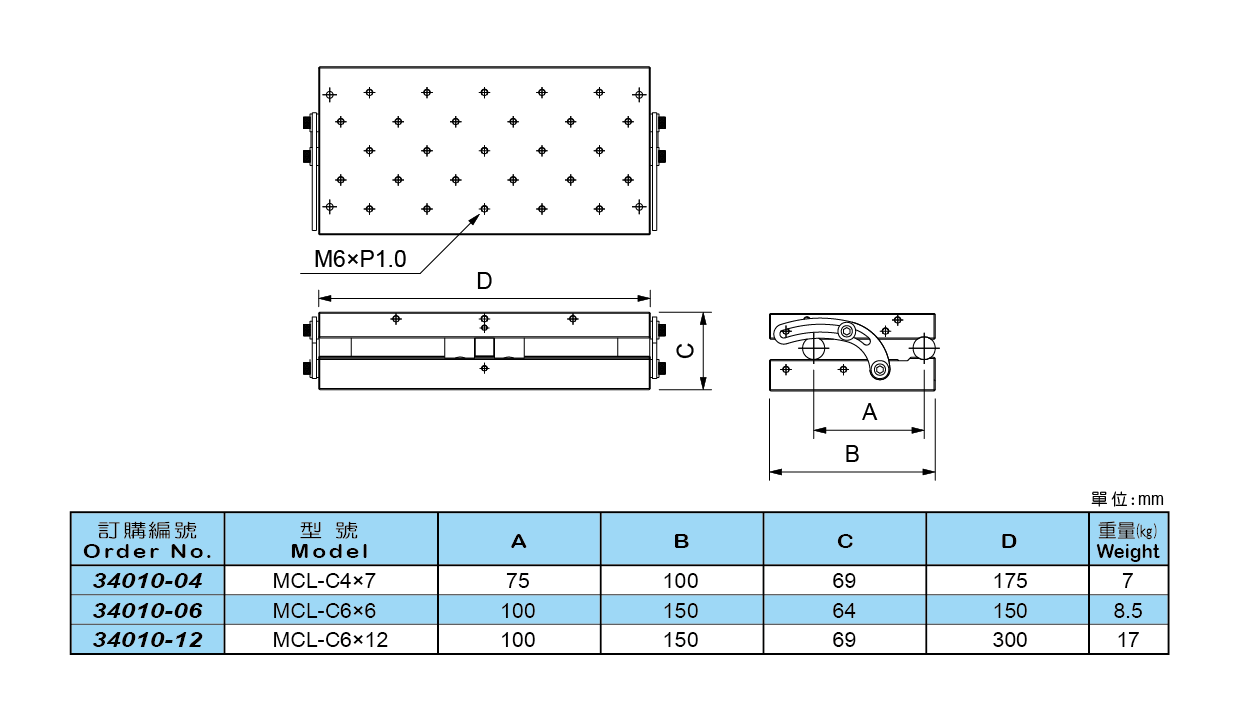

MCL-C4×7 MCL-C6×6 MCL-C6×12 MCL-C4*7 MCL-C6*6 MCL-C6*12
