34015 DOUBLE SINE PLATE

Item Model：MCL-C2W__
Download
Detail
● Two-way Sine plate can be adjusted sine X-axis or Y-axis angle. The user can adjust to simultaneous angle for drilling, milling, grinding and other precision angle.
● There are screw holes on  panel to fix fixture or work piece with high precision.
● Range of angle adjustment：0~60°
● Accuracy of center：within 0.005mm
● Parallel precision：100mm/0.003mm

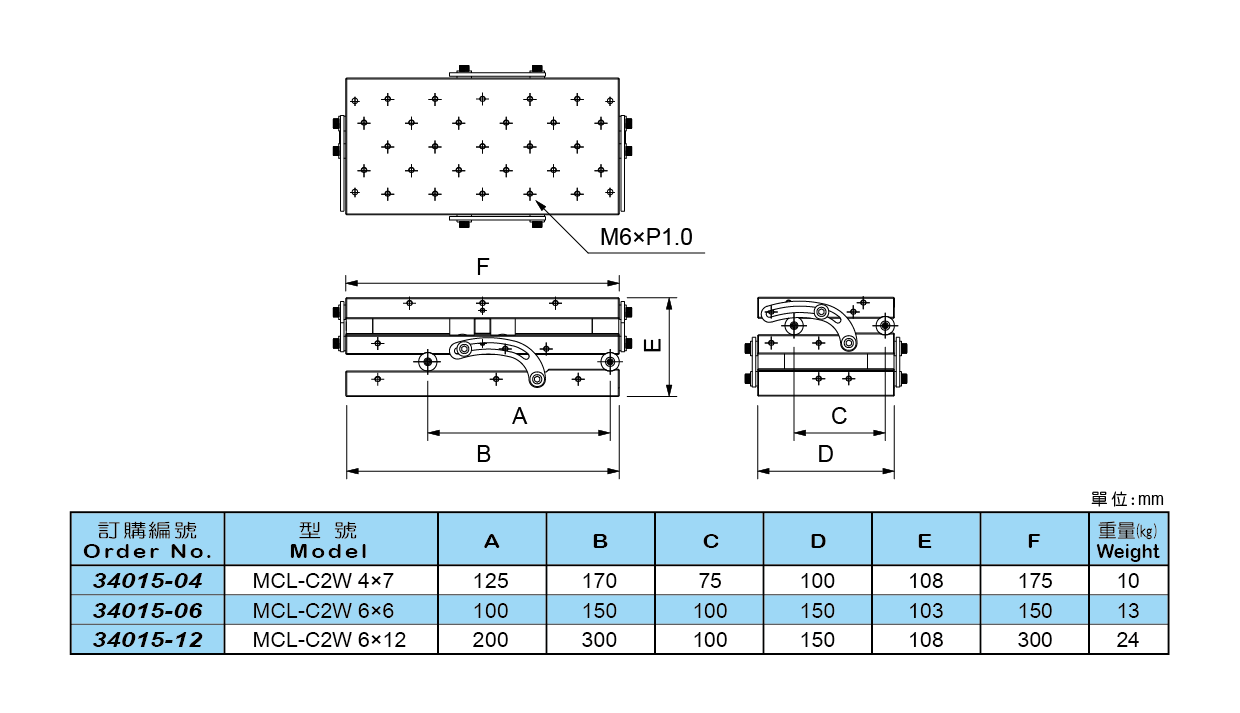

MCL-C2W 4×7  MCL-C2W 6×6  MCL-C2W 6×12   MCL-C2W4*  MCL-C2W6*6  MCL-C2W6*12
