34029 DOUBLE SINE PLATE WITH MAGNETIC

Item Model：MCL-D2W_
Download
Detail
● Two-way Sine plate can be adjusted sine X-axis or Y-axis angle. The user can adjust to simultaneous angle for precision angle.
● The pole of chuck is fine ; suitable for small workpiece processing.
● Range of angle adjustment：0~60°
● Accuracy of center：within 0.005mm
● Parallel precision：100mm /0.003mm

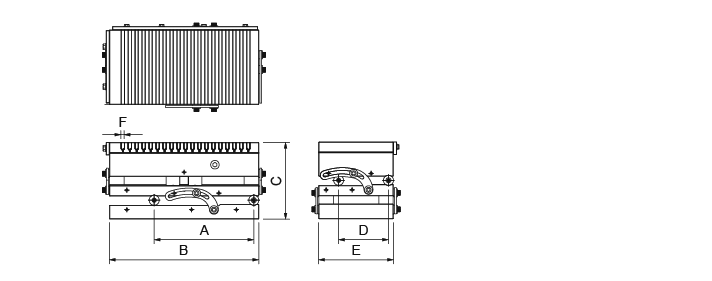

Order No. Model A B C D E F Weight (kg)
34029-15 MCL-D2W6060 100 150 130 100 150 2.5 (1+1.5) 18
34029-30 MCL-D2W60120 200 300 130 100 150 2.5 (1+1.5) 35
