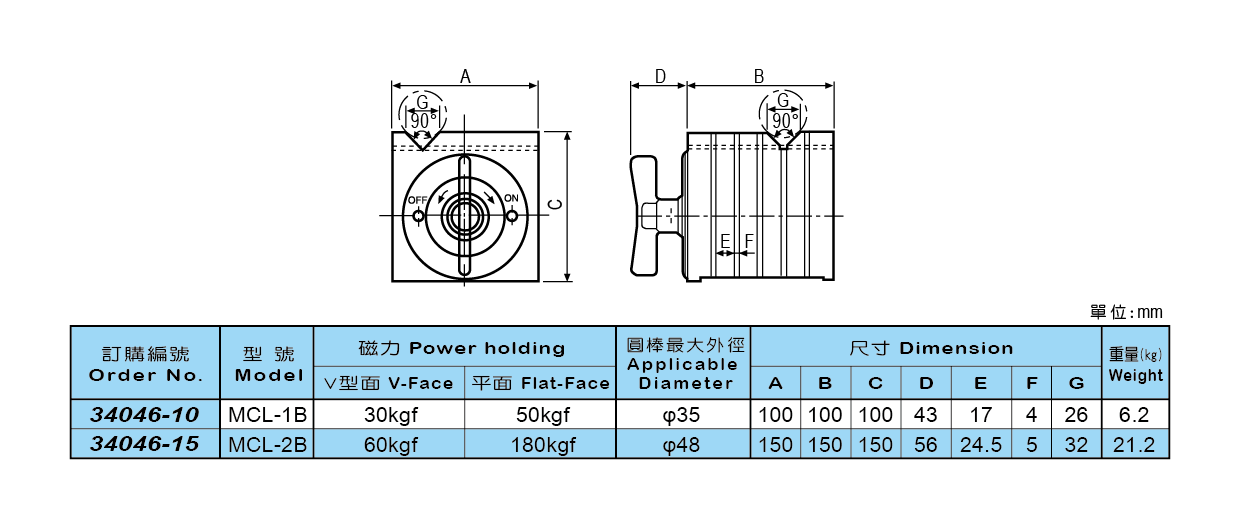

34046 SQUARE TYPE MAGNETIC BLOCK

Item Model：MCL-1B / MCL-2B
Download
Detail
● Attraction available on the upper face both side face and V-face.
● The block can be placed flat and side to support a fixed jig for measuring and marking.
● The V-shaped side can be used with round and long strip workpiece for efficient processing.
● V tpye surface and right angle degree:100mm/0.01mm.
