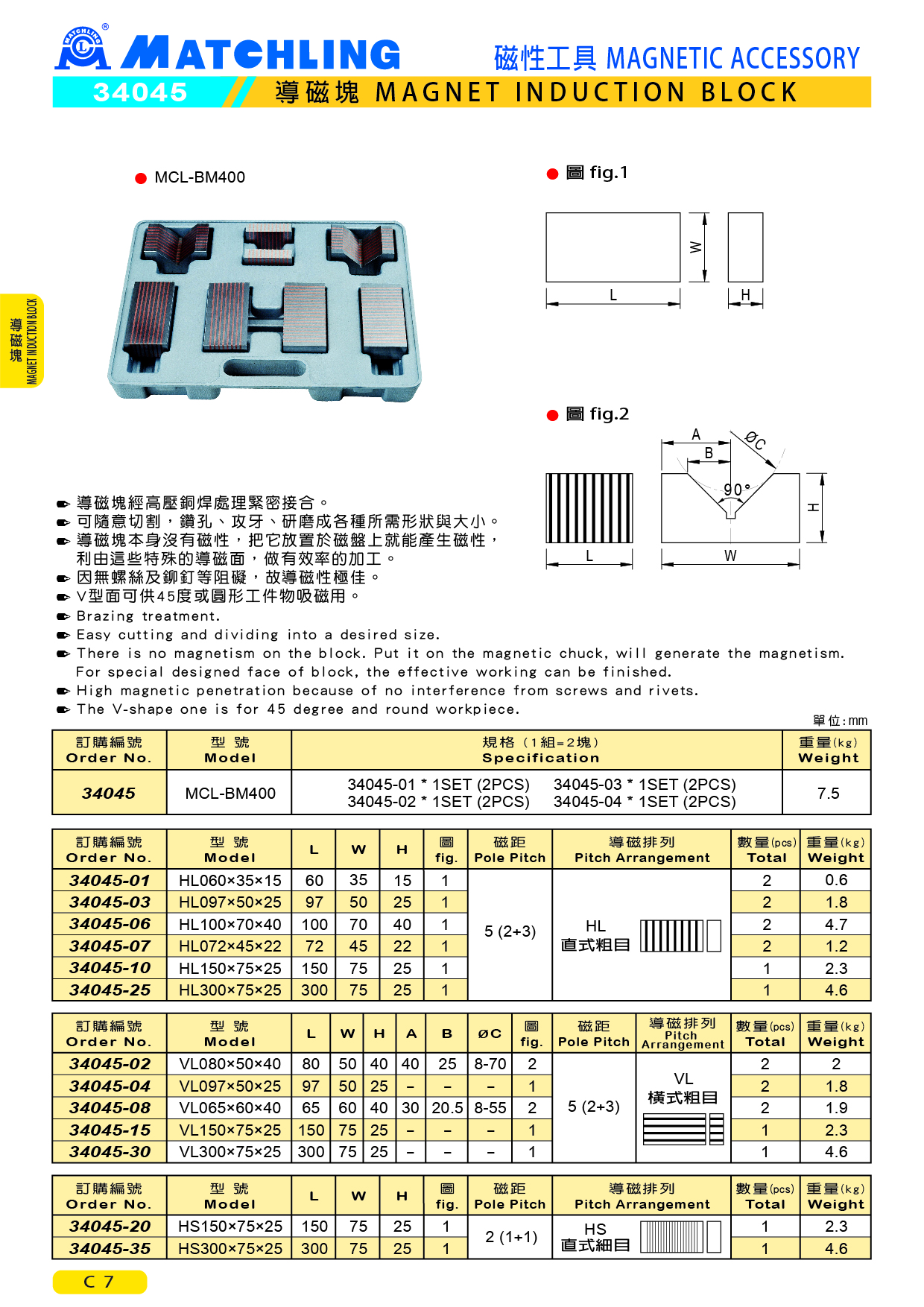

● Easy cutting and dividing into a desired size.
● There is no magnetism on the block. Put it on the magnetic chuck, will generate the magnetism. For special designed face of block, the effective working can be finished.
● High magnetic penetration because of no interference from screws and rivets.

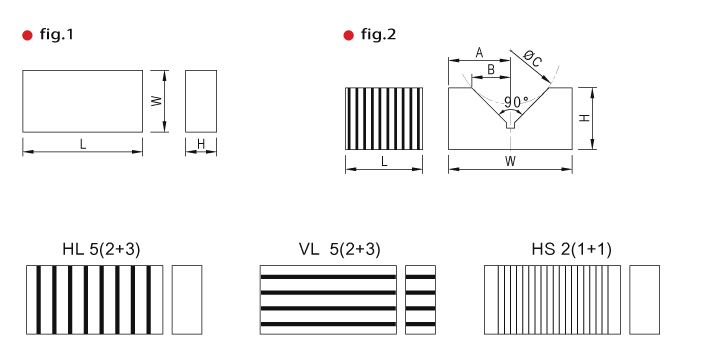

● The V-shape one is for 45 degree and round workpiece.
| Order No. | Model | L | W | H | fig | Pitch Arrangement | Total (pcs) | weight (kg) |
|---|---|---|---|---|---|---|---|---|
| 34045-01 | HL060*35*15 | 60 | 35 | 15 | 1 | HL 5(2+3) | 2 | 0.6 |
| 34045-03 | HL097*50*25 | 97 | 50 | 25 | 1 | HL 5(2+3) | 2 | 1.8 |
| 34045-06 | HL100*70*40 | 100 | 70 | 40 | 1 | HL 5(2+3) | 2 | 4.7 |
| 34045-07 | HL072*45*22 | 72 | 45 | 22 | 1 | HL 5(2+3) | 2 | 1.2 |
| 34045-10 | HL150*75*25 | 150 | 75 | 25 | 1 | HL 5(2+3) | 1 | 2.3 |
| 34045-25 | HL300*75*25 | 300 | 75 | 25 | 1 | HL 5(2+3) | 1 | 4.6 |
| Order No. | Model | L | W | H | A | B | ØC | fig | Pitch Arrangement | Total (pcs) | weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 34045-02 | HL060*35*15 | 60 | 35 | 15 | 40 | 25 | 8-70 | 2 | VL 5(2+3) | 2 | 2 |
| 34045-04 | HL097*50*25 | 97 | 50 | 25 | - | - | - | 1 | VL 5(2+3) | 2 | 1.8 |
| 34045-08 | HL100*70*40 | 100 | 70 | 40 | 30 | 20.5 | 8-55 | 2 | VL 5(2+3) | 2 | 1.9 |
| 34045-15 | HL072*45*22 | 72 | 45 | 22 | - | - | - | 1 | VL 5(2+3) | 1 | 2.3 |
| 34045-30 | HL150*75*25 | 150 | 75 | 25 | - | - | - | 1 | VL 5(2+3) | 1 | 4.6 |
| Order No. | Model | L | W | H | fig | Pitch Arrangement | Total (pcs) | weight (kg) |
|---|---|---|---|---|---|---|---|---|
| 34045-20 | HS150*75*25 | 150 | 75 | 25 | 1 | HS 2(1+1) | 1 | 2.3 |
| 34045-35 | HS300*75*25 | 300 | 75 | 25 | 1 | HS 2(1+1) | 1 | 4.6 |
