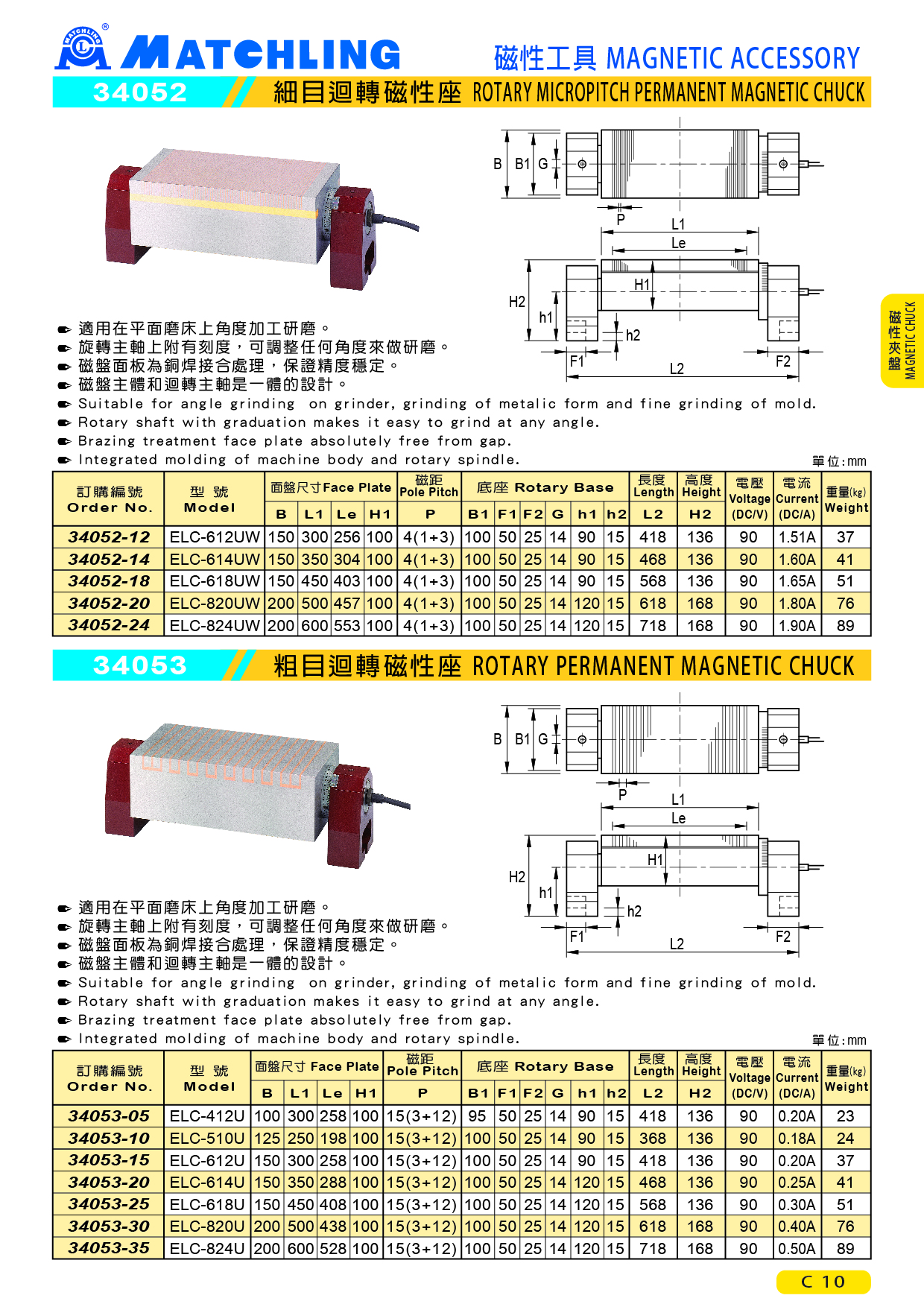

34052 ROTARY MICROPITCH PERMANENT MAGNETIC CHUCK

Item Model：ELC-__UW
Download
Detail
● Suitable for angle grinding  on grinder, grinding of metalic form and fine grinding of mold.
● Rotary shaft with graduation makes it easy to grind at any angle.
● Brazing treatment face plate absolutely free from gap.
● Integrated molding of machine body and rotary spindle.

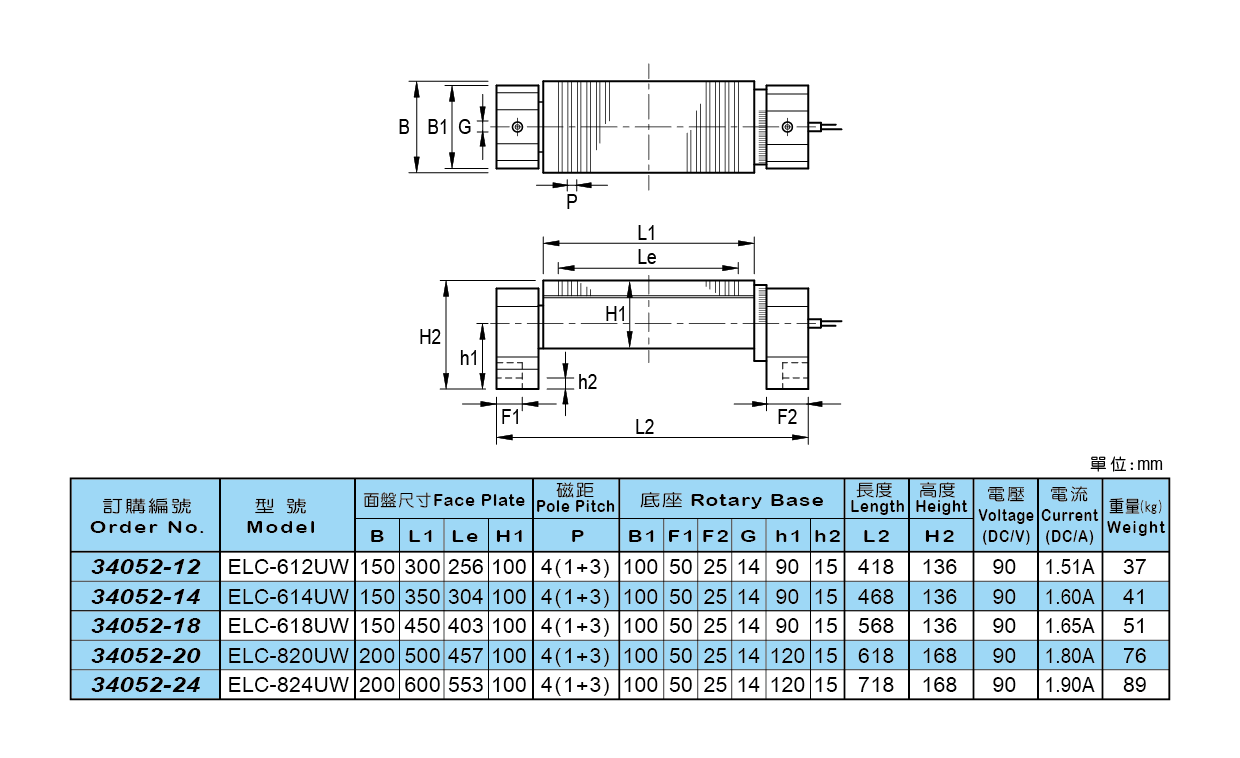

ELC-612UW ELC-614UW ELC-618UW ELC-820UW ELC-824UW 粗目迴轉磁性座
