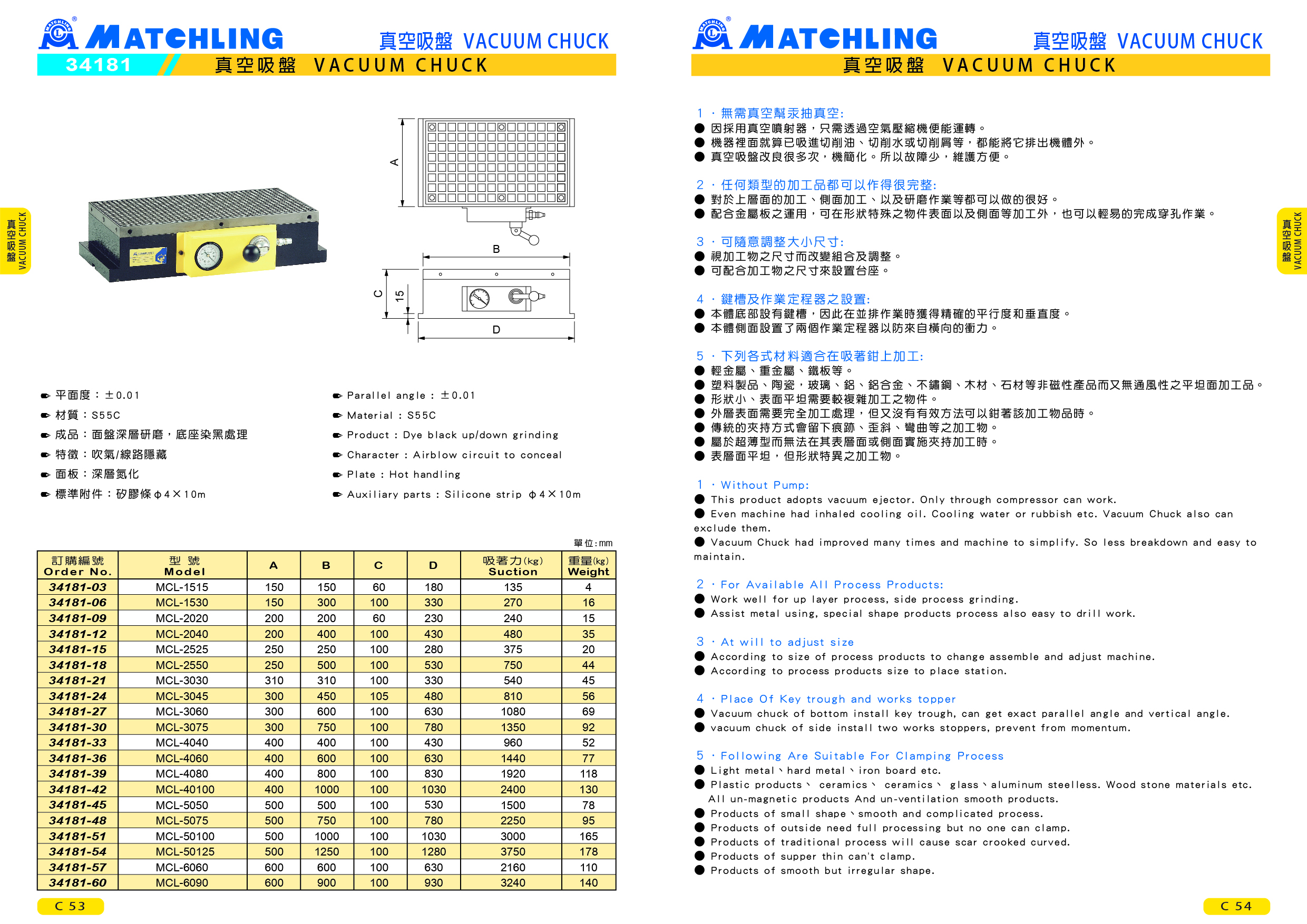

１．Without Pump:
● This product adopts vacuum ejector. Only through compressor can work.
● Even machine had inhaled cooling oil. Cooling water or rubbish etc. Vacuum Chuck also can exclude them.
● Vacuum Chuck had improved many times and machine to simplify. So less breakdown and easy to maintain.

２．For Available All Process Products:

● Work well for up layer process, side process grinding.
● Assist metal using, special shape products process also easy to drill work.

３．At will to adjust size
● According to size of process products to change assemble and adjust machine.
● According to process products size to place station.

４．Place Of Key trough and works topper
● Vacuum chuck of bottom install key trough, can get exact parallel angle and vertical angle.
● vacuum chuck of side install two works stoppers, prevent from momentum.

５．Following Are Suitable For Clamping Process
● Light metal、hard metal、iron board etc.
● Plastic products、 ceramics、 ceramics、 glass、aluminum steelless. Wood stone materials etc.  All un-magnetic products And un-ventilation smooth products.
● Products of small shape、smooth and complicated process.
● Products of outside need full processing but no one can clamp.

● Products of traditional process will cause scar crooked curved.
● Products of supper thin can't clamp.
● Products of smooth but irregular shape.

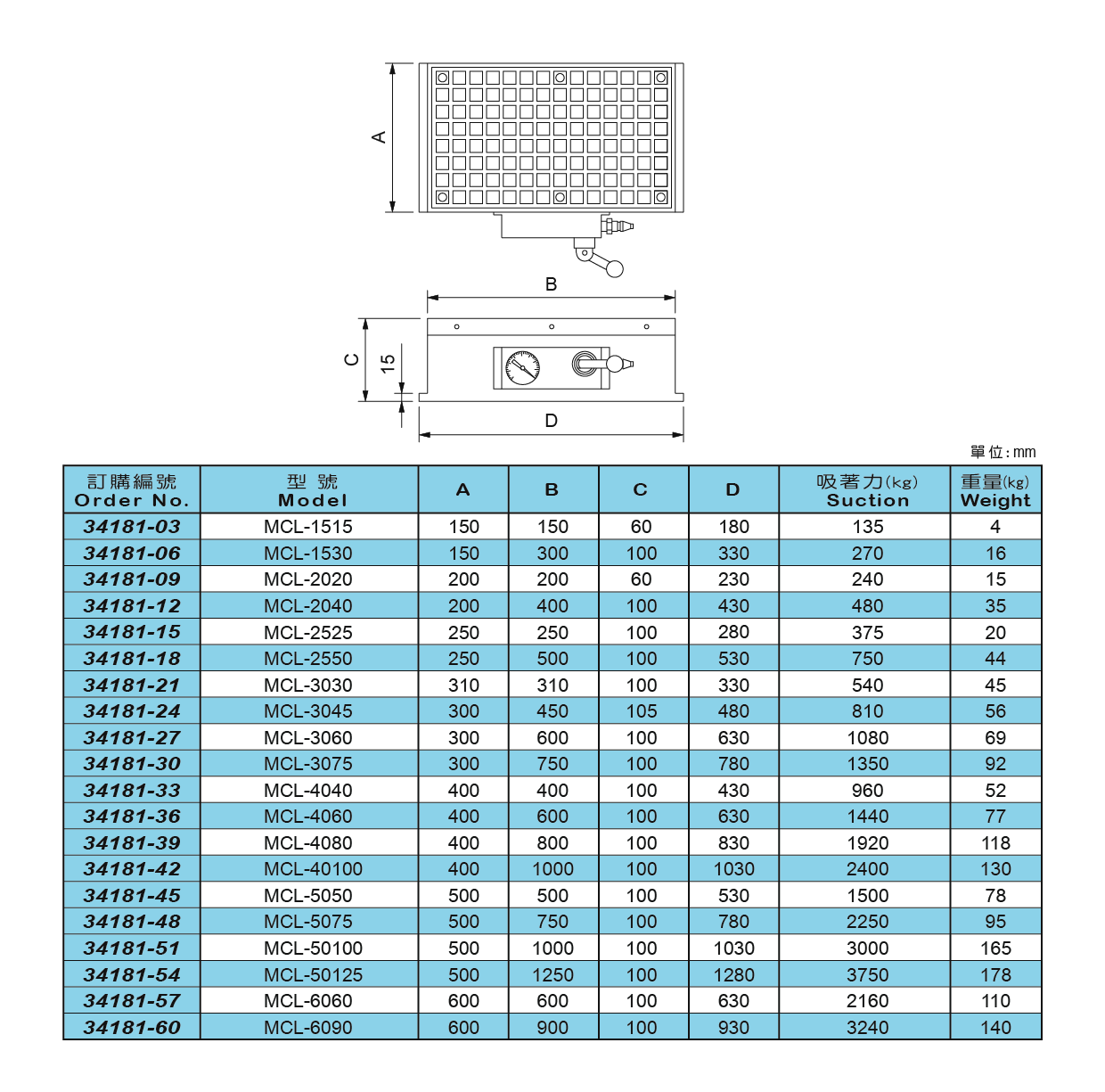

MCL-1515 MCL-1530 MCL-2020 MCL-2040 MCL-2525 MCL-2550 MCL-3030 MCL-3045 MCL-3060 MCL-3075 MCL-4040 MCL-4060 MCL-4080 MCL-40100 MCL-5050 MCL-5075 MCL-50100 MCL-50125 MCL-6060 MCL-6090
