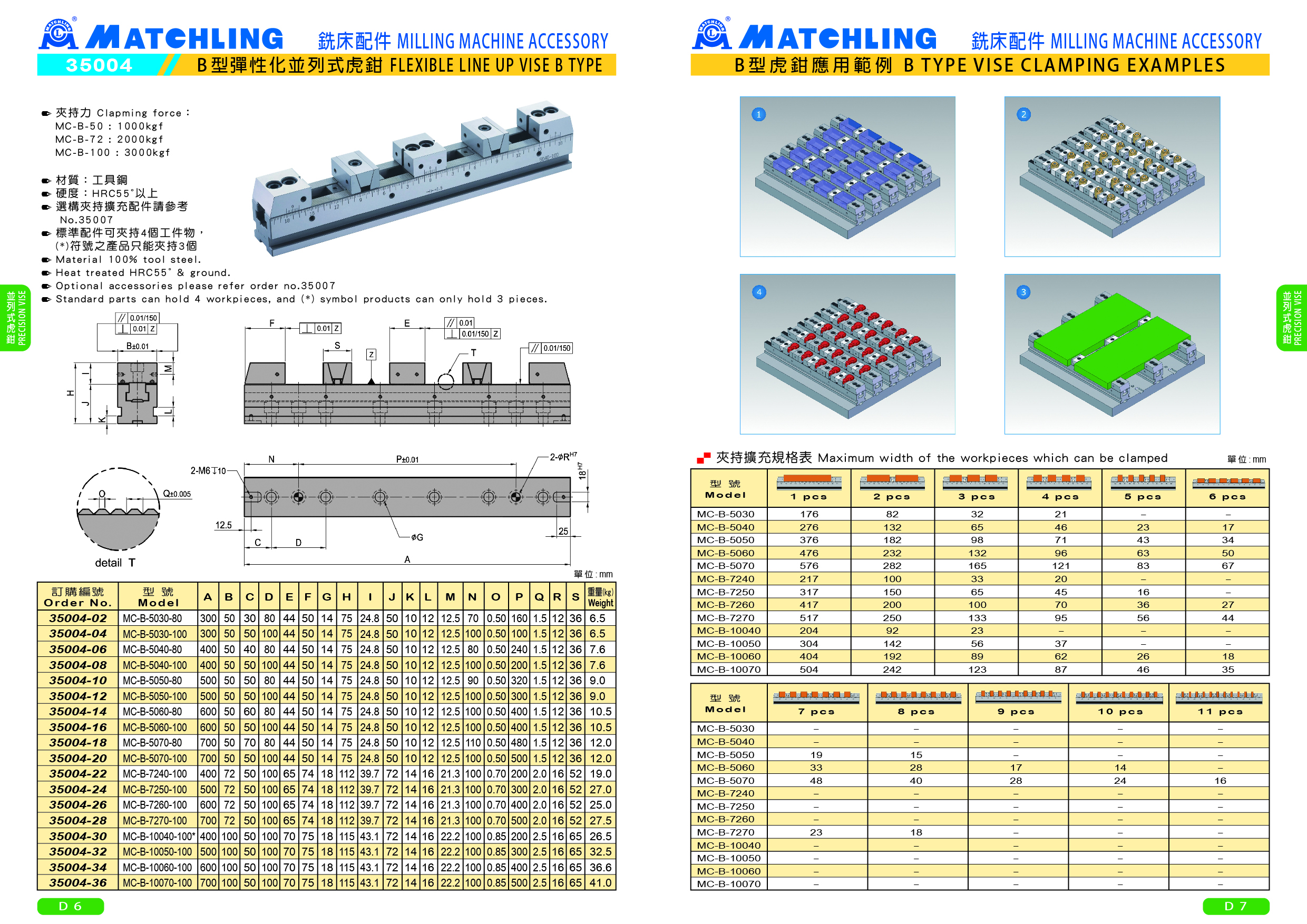

35004 FLEXIBLE LINE UP VISE B TYPE

Item Model：MC-B-__
Download
Detail
●  Material 100% tool steel.
●  Heat treated HRC55˚ & ground.
●  Optional accessories please refer order no.35007

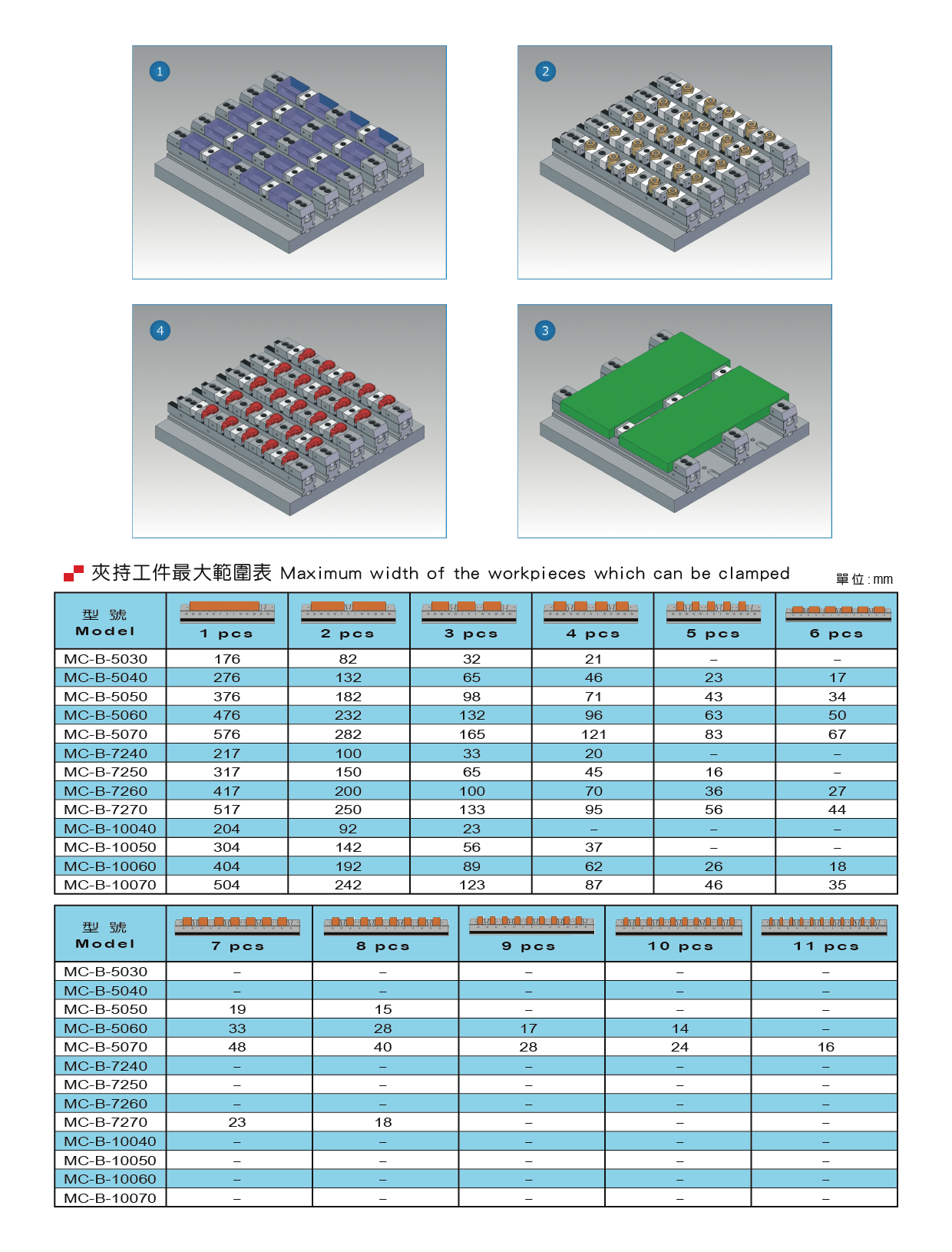

●  (*) These units will only hold     up to 3 parts.

●  Clapming force：
   MC-B-50 : 1000kgf
   MC-B-72 : 2000kgf
   MC-B-100 : 3000kgf





MC-B-5030-80 MC-B-5030-100 MC-B-5040-80 MC-B-5040-100 MC-B-5050-80 MC-B-5050-100 MC-B-5060-80 MC-B-5060-100 MC-B-5070-80 MC-B-5070-100 MC-B-7240-100 MC-B-7250-100 MC-B-7260-100 MC-B-7270-100 MC-B-10040-100* MC-B-10050-100 MC-B-10060-100 MC-B-10070-100
