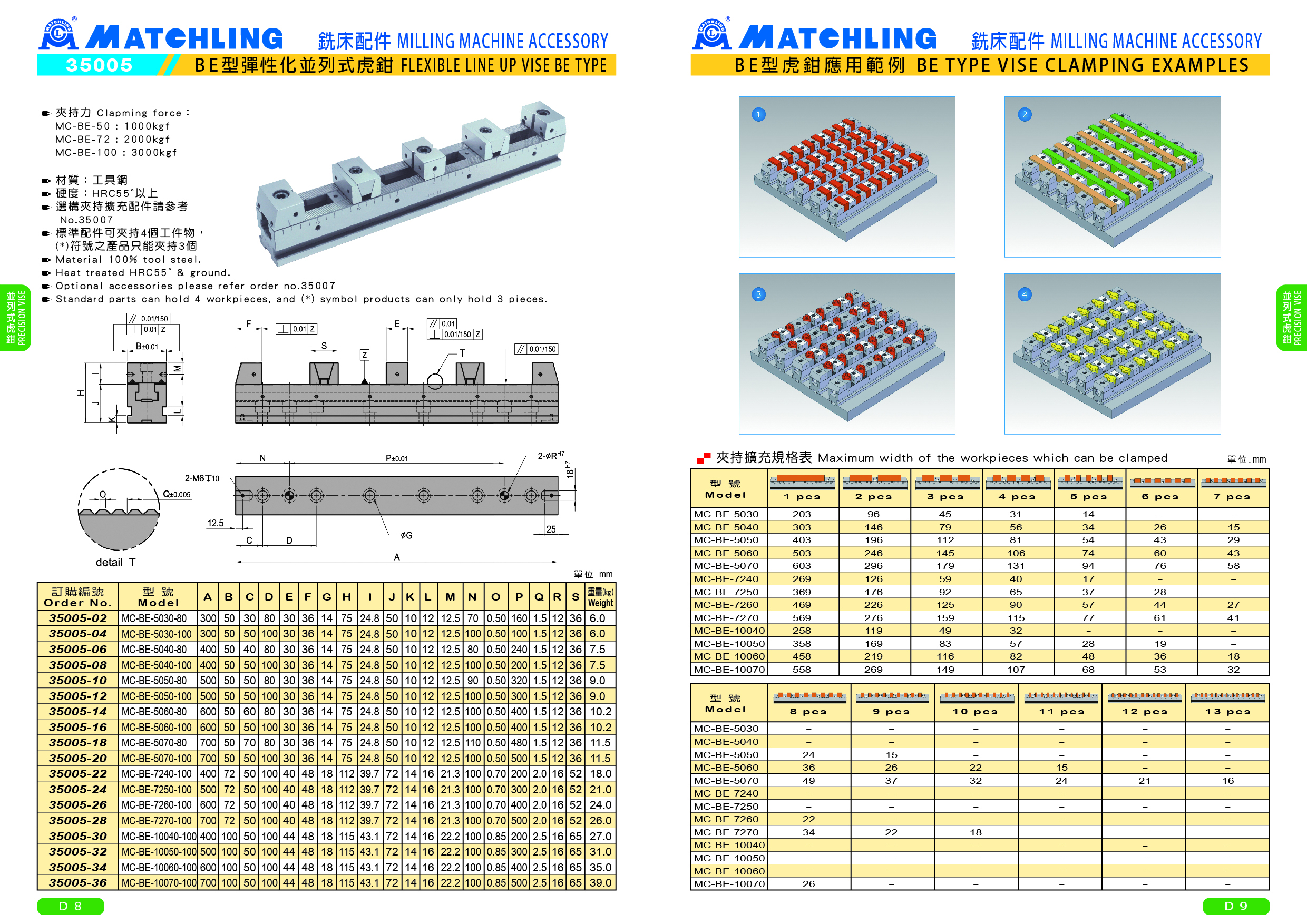

35005 FLEXIBLE LINE UP VISE BE TYPE

Item Model：MC-BE-__
Download
Detail
● Material 100% tool steel.
● Heat treated HRC55˚ & ground.
● Optional accessories please refer order no.35007

● Clapming force：
   MC-BE-50 : 1000kgf
   MC-BE-72 : 2000kgf
   MC-BE-100 : 3000kgf

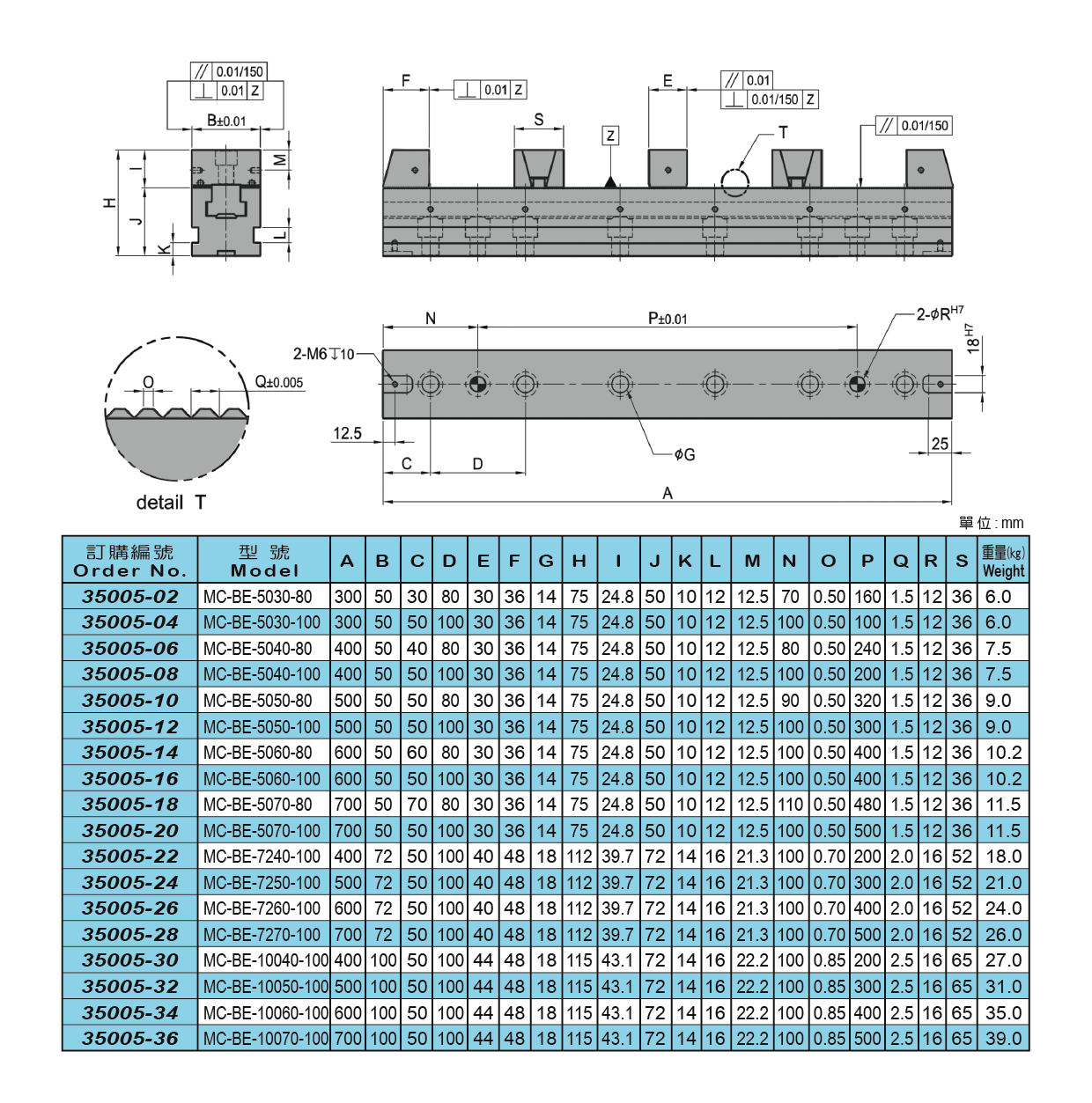

MC-BE-5030-80 MC-BE-5030-100 MC-BE-5040-80 MC-BE-5040-100 MC-BE-5050-80 MC-BE-5050-100 MC-BE-5060-80 MC-BE-5060-100 MC-BE-5070-80 MC-BE-5070-100 MC-BE-7240-100 MC-BE-7250-100 MC-BE-7260-100 MC-BE-7270-100 MC-BE-10040-100 MC-BE-10050-100 MC-BE-10060-100 MC-BE-10070-100
