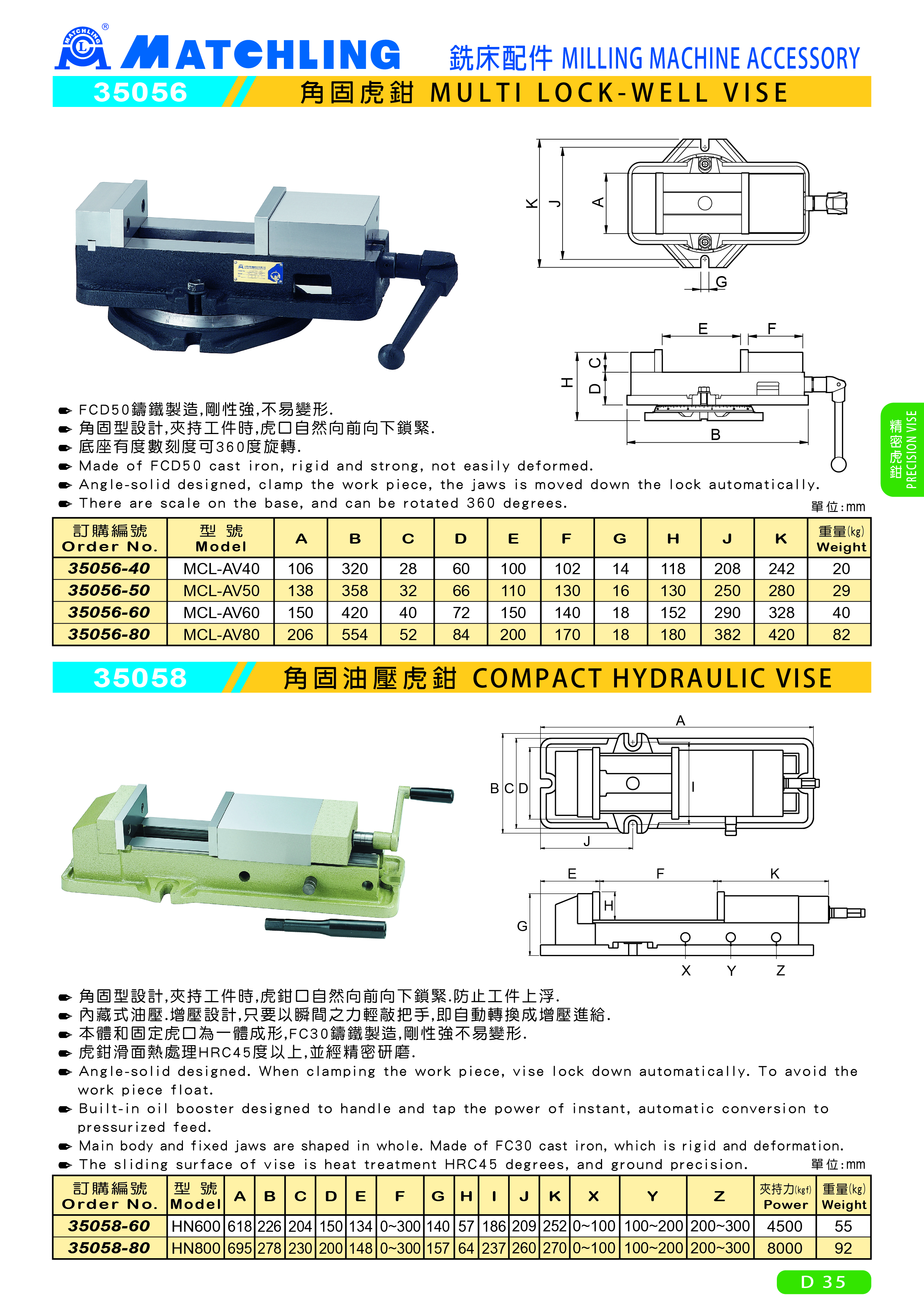

35056 MULTI LOCK-WELL VISE

Item Model：MCL-AV__
Download
Detail
● Made of FCD50 cast iron, rigid and strong, not easily deformed.
● Angle-solid designed, clamp the work piece, the jaws is moved down the lock automatically.
● There are scale on the base, and can be rotated 360 degrees.

M
Order No. Model A B C D E F G H J K Weight (kg)
35056-40 MCL-AV40 106 320 28 60 100 102 14 118 208 242 20
35056-50 MCL-AV50 138 358 32 66 110 130 16 130 250 280 29
35056-60 MCL-AV60 150 420 40 72 150 140 18 152 290 328 40
35056-80 MCL-AV80 206 554 52 84 200 170 18 180 382 420 82
