Products MC BASE PLATE / MC TOOLING COLUMN

  1. MILLING ACCESSORY SERIES
  2. MC BASE PLATE / MC TOOLING COLUMN

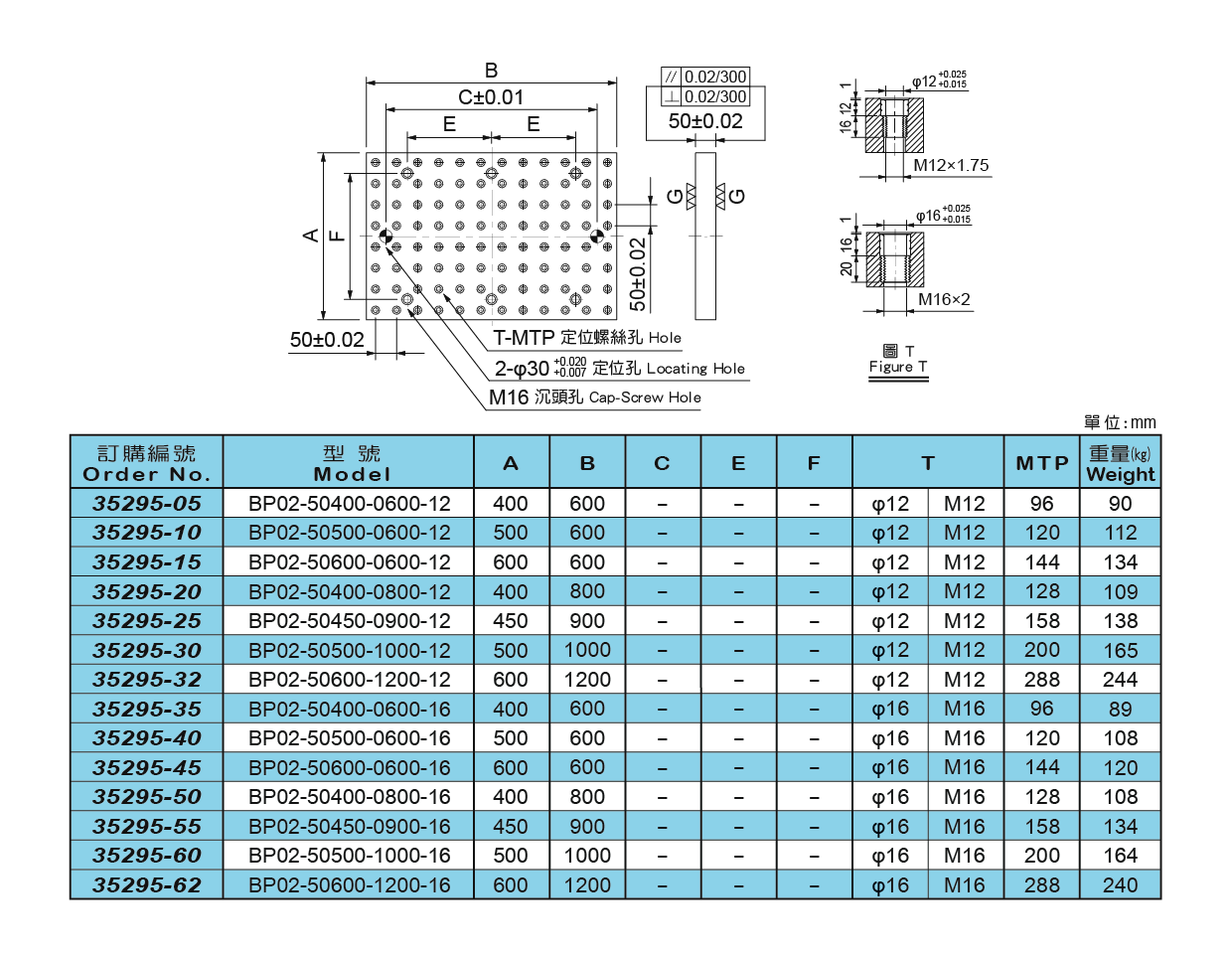

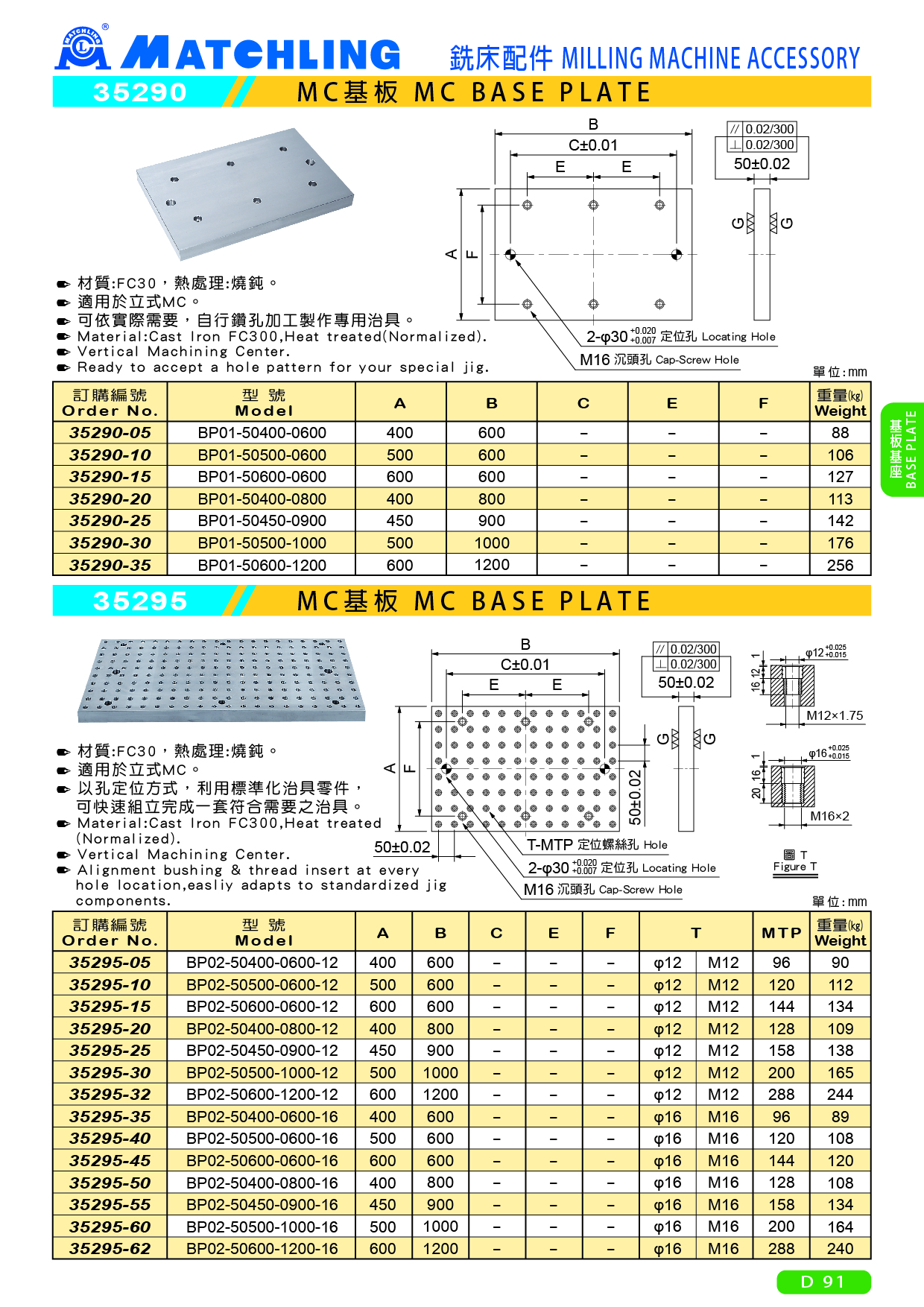

35295 MC BASE PLATE

Item Model：BP02-__
Download
Detail
● Material:Cast Iron FC300,Heat treated (Normalized).
● Vertical Machining Center.
● Alignment bushing & thread insert at every hole location,easliy adapts to standardized jig     components.


BP02-50400-0600-12 BP02-50500-0600-12 BP02-50600-0600-12 BP02-50400-0800-12 BP02-50450-0900-12 BP02-50500-1000-12 BP02-50600-1200-12 BP02-50400-0600-16 BP02-50500-0600-16 BP02-50600-0600-16 BP02-50400-0800-16 BP02-50450-0900-16 BP02-50500-1000-16 BP02-50600-1200-16
