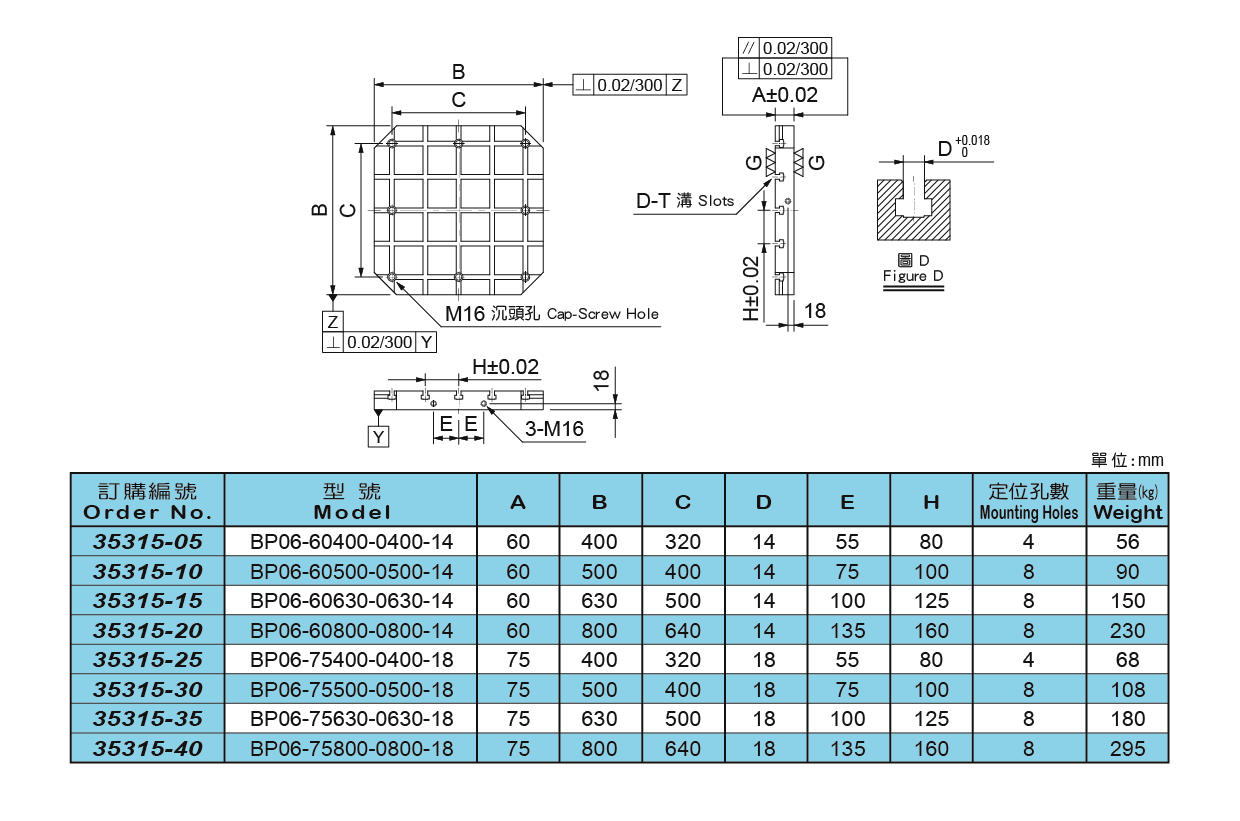

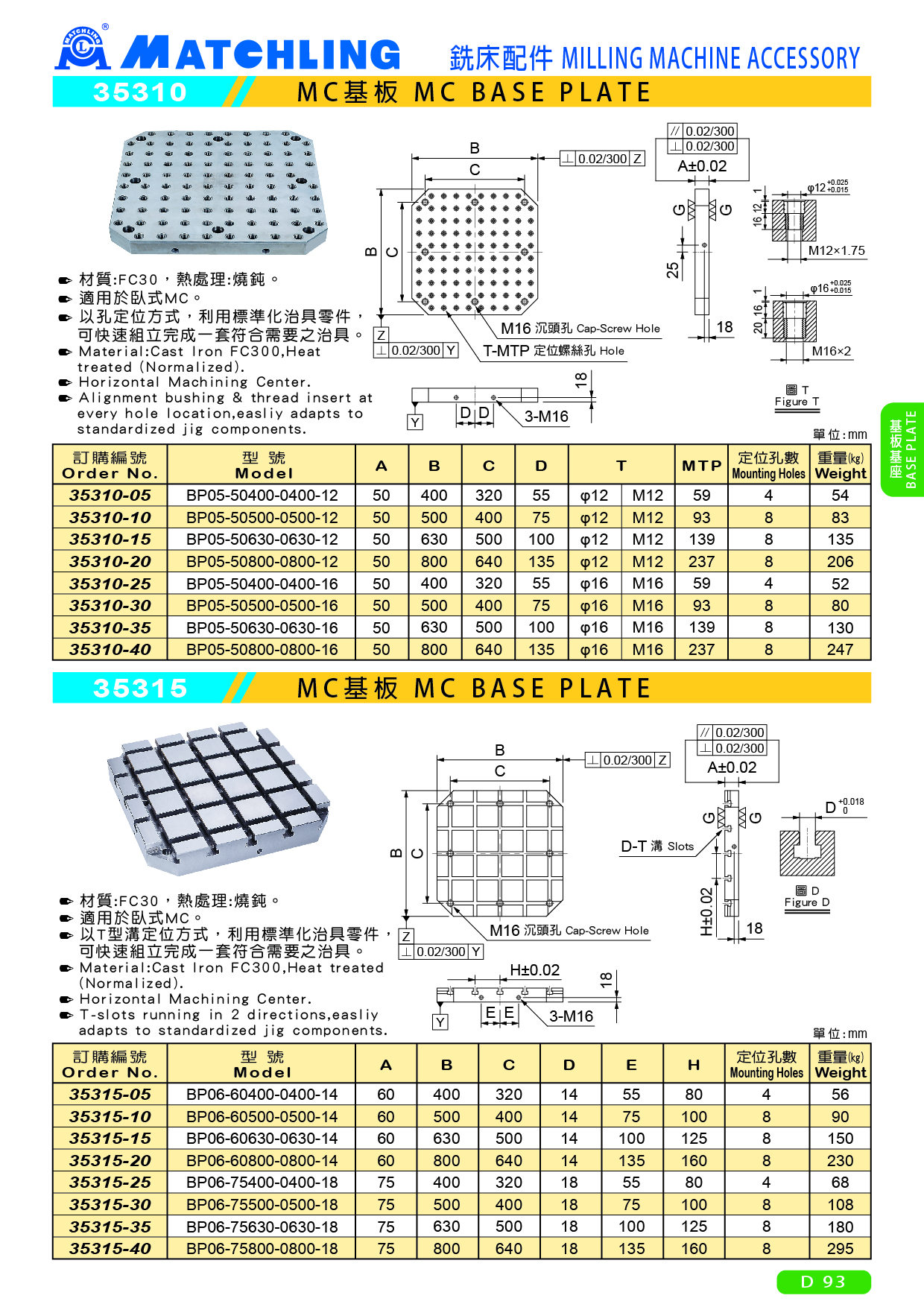

35315 MC BASE PLATE

Item Model：BP06-__
Download
Detail
● Material:Cast Iron FC300,Heat treated(Normalized).
● Horizontal Machining Center.
● T-slots running in 2 directions,easliy adapts to standardized jig components.


BP06-60400-0400-14 BP06-60500-0500-14 BP06-60630-0630-14 BP06-60800-0800-14 BP06-75400-0400-18 BP06-75500-0500-18 BP06-75630-0630-18 BP06-75800-0800-18
