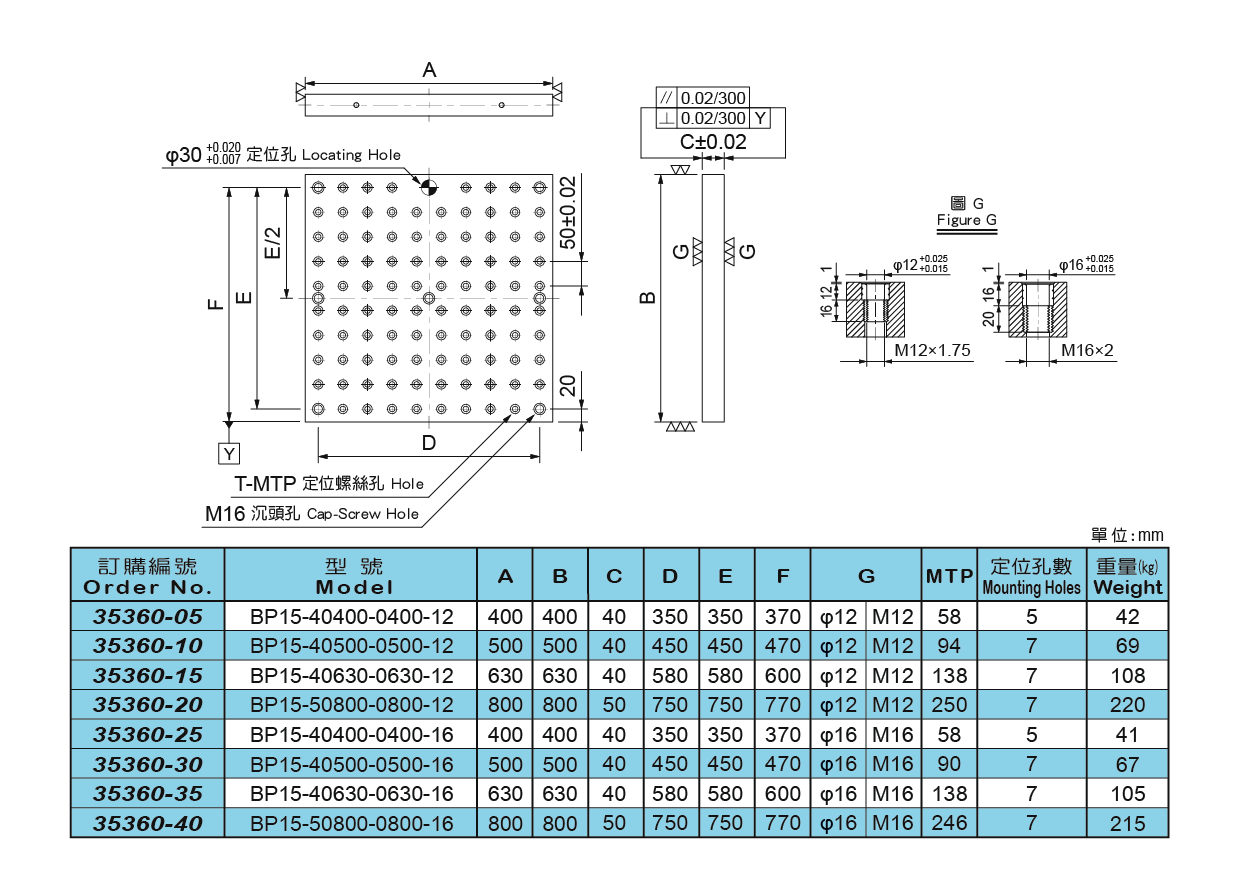

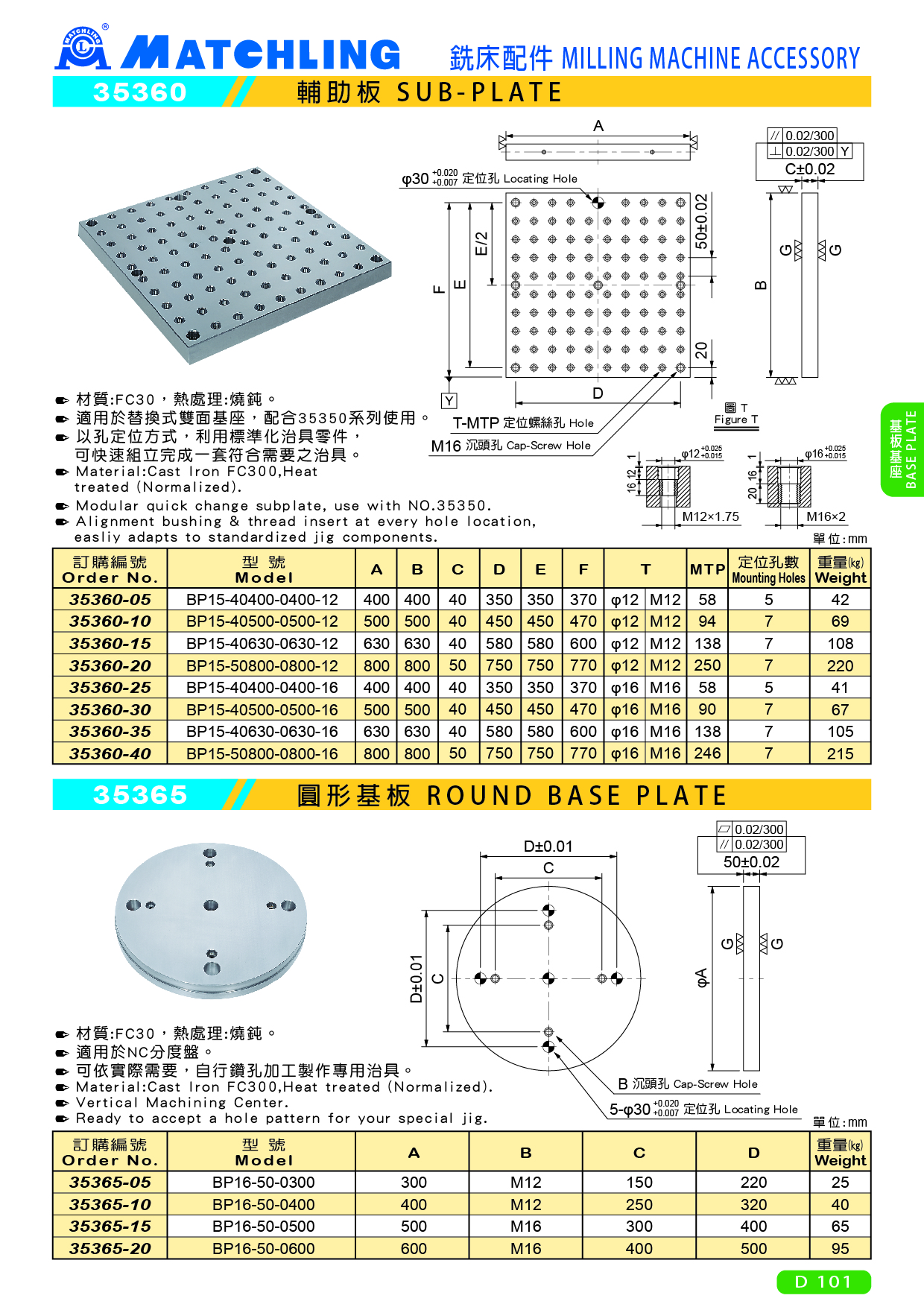

● Modular quick change subplate, use with NO.35350.
● Alignment bushing & thread insert at every hole location,easliy adapts to standardized jig components.
BP15-40400-0400-12 BP15-40500-0500-12 BP15-40630-0630-12 BP15-50800-0800-12 BP15-40400-0400-16 BP15-40500-0500-16 BP15-40630-0630-16 BP15-50800-0800-16
