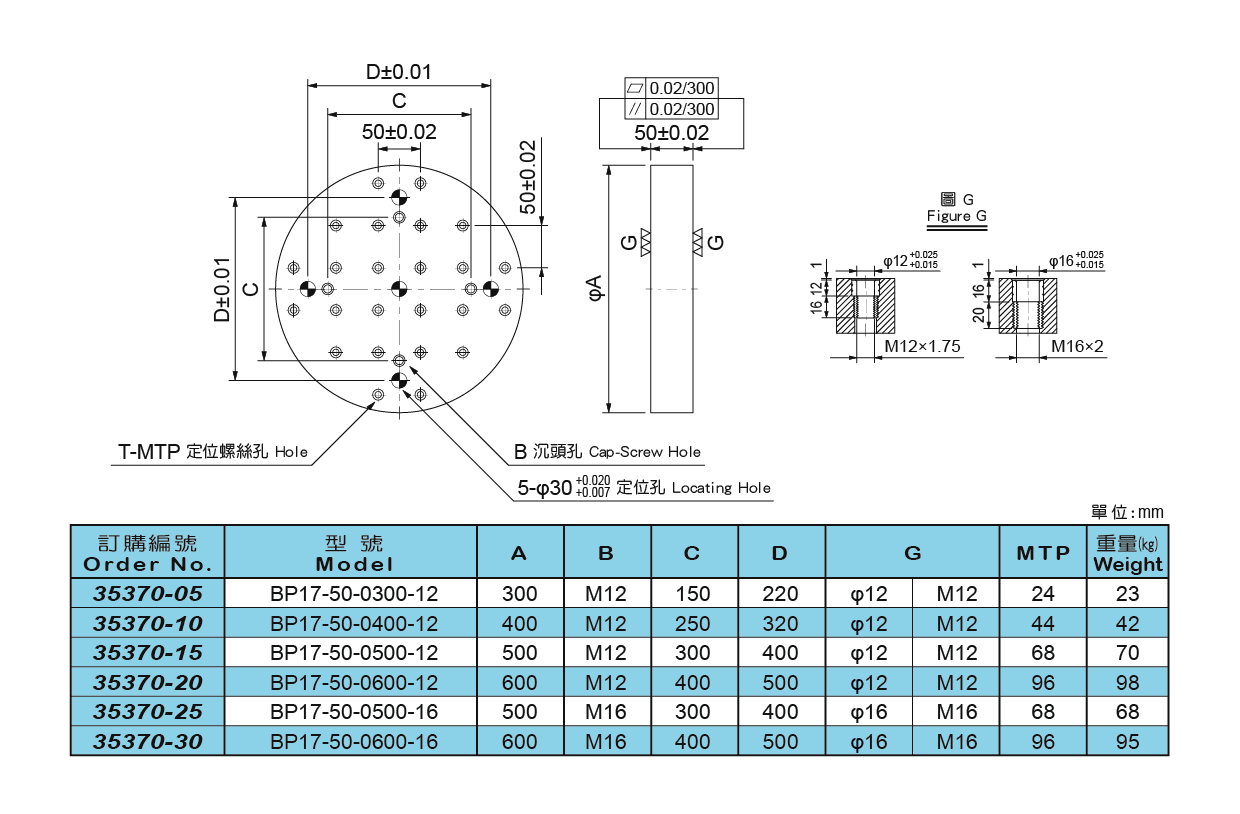

35370 ROUND BASE PLATE

Item Model：BP17-__
Download
Detail
● Material:Cast Iron FC300,Heat treated (Normalized).
● NC Rotary Table or Indexer.
● Alignment bushing & thread insert at every hole location,easliy adapts to standardized jig components.


BP17-50-0300-12 BP17-50-0400-12 BP17-50-0500-12 BP17-50-0600-12 BP17-50-0500-16 BP17-50-0600-16
