Products MC BASE PLATE / MC TOOLING COLUMN

  1. MILLING ACCESSORY SERIES
  2. MC BASE PLATE / MC TOOLING COLUMN

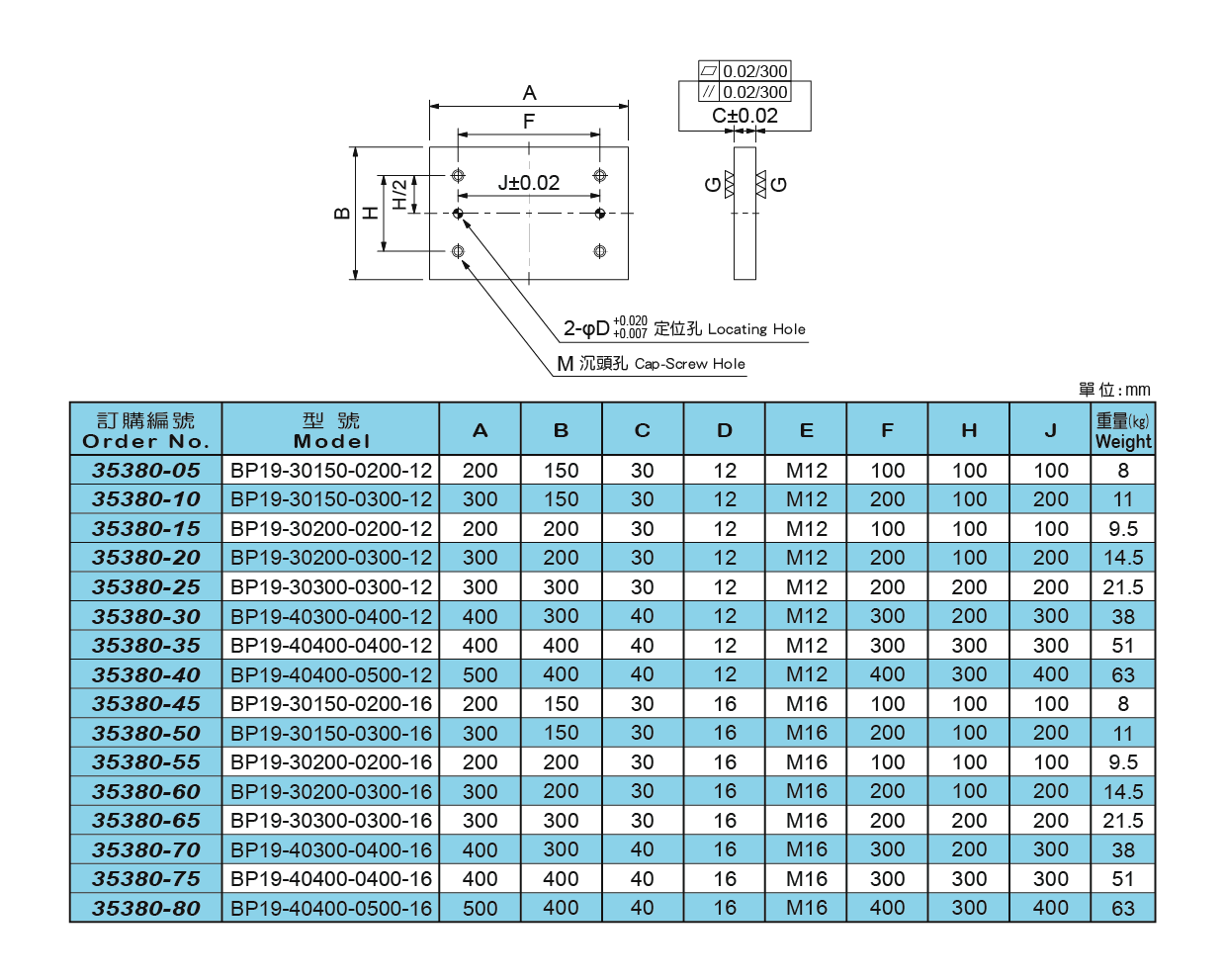

35380 SUB-PLATE

Item Model：BP19-__
Download
Detail
● Material:S45C,Heat treated (Normalized).
● Multipurpose subplate.
● Ready to accept a hole pattern for your special jig.


BP19-30150-0200-12 BP19-30150-0300-12 BP19-30200-0200-12 BP19-30200-0300-12 BP19-30300-0300-12 BP19-40300-0400-12 BP19-40400-0400-12 BP19-40400-0500-12 BP19-30150-0200-16 BP19-30150-0300-16 BP19-30200-0200-16 BP19-30200-0300-16 BP19-30300-0300-16 BP19-40300-0400-16 BP19-40400-0400-16 BP19-40400-0500-16
BACK
