35395 ANGLE PLATE

Item Model：BP22-__
Download
Detail
● Material:Cast Iron FC300,Heat treated (Normalized).
● Horizontal Machining Center.
● T-slots running in 2 directions,easliy adapts to     standardized jig components.

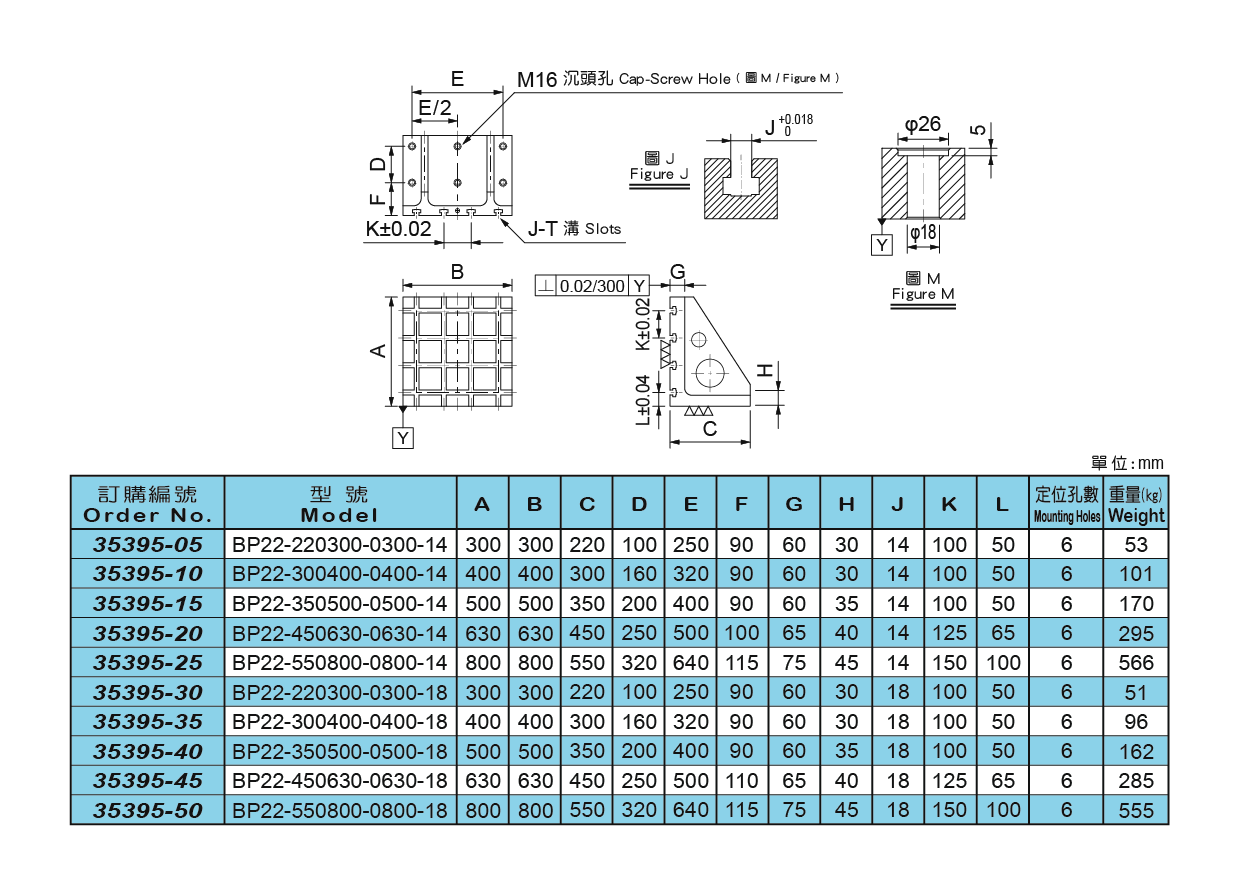

BP22-220300-0300-14 BP22-300400-0400-14 BP22-350500-0500-14 BP22-450630-0630-14 BP22-550800-0800-14 BP22-220300-0300-18 BP22-300400-0400-18 BP22-350500-0500-18 BP22-450630-0630-18 BP22-550800-0800-18
