Products MC BASE PLATE / MC TOOLING COLUMN

  1. MILLING ACCESSORY SERIES
  2. MC BASE PLATE / MC TOOLING COLUMN

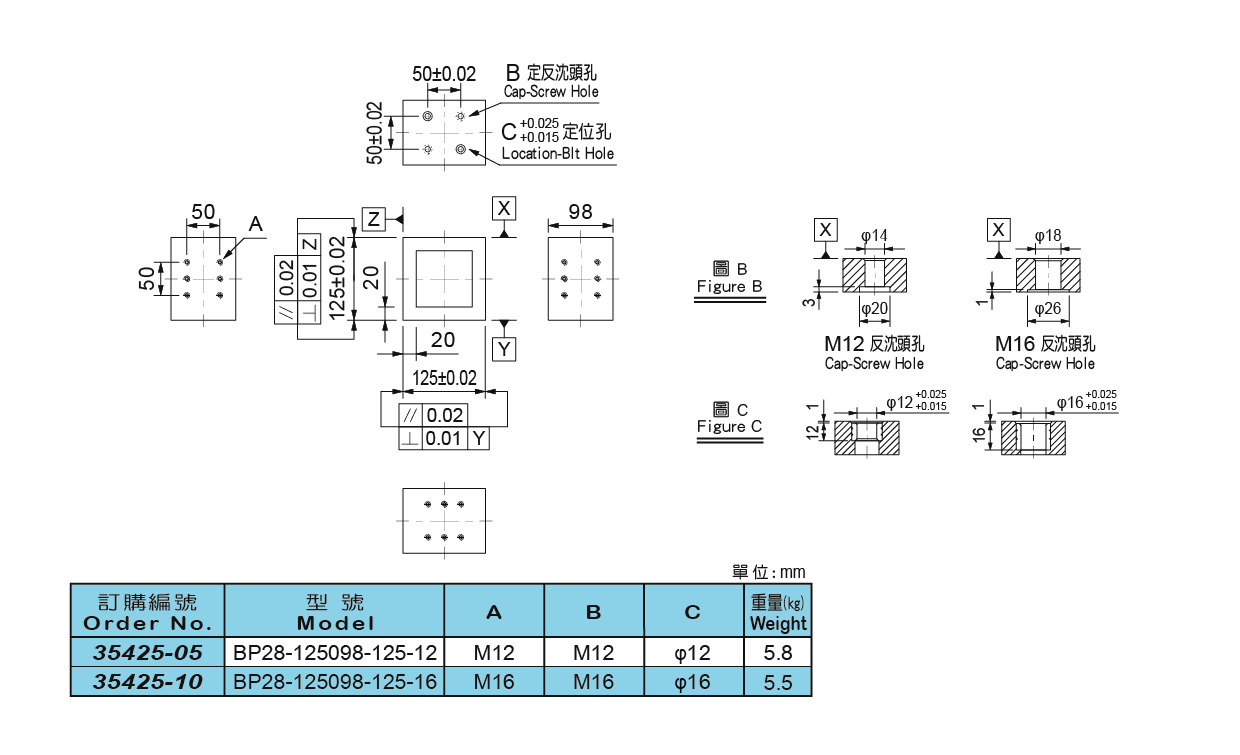

35425 RECTANGULAR CAST SECTION

Item Model：BP28-__
Download
Detail
● Material:Cast Iron FC300,Heat treated (Normalized).
● Cast sections provide a fast & economical way to make special components.
● Alignment bushing & thread insert at every hole location,easliy adapts to standardized jig components.


BP28-125098-125-12 BP28-125098-125-16
