● The pull back clamping force enables the work piece close the datum, so that the clamping is firm. It’s applicable to heavy cutting.
● Chuck actuators with cylindrical structure are durable and ensures high gripping repeatability.
● Accurate self-centering and pull back features are adequate for precise length control machining requirements.
● Optional components can be selected for detecting the right position on an automated loading machine.

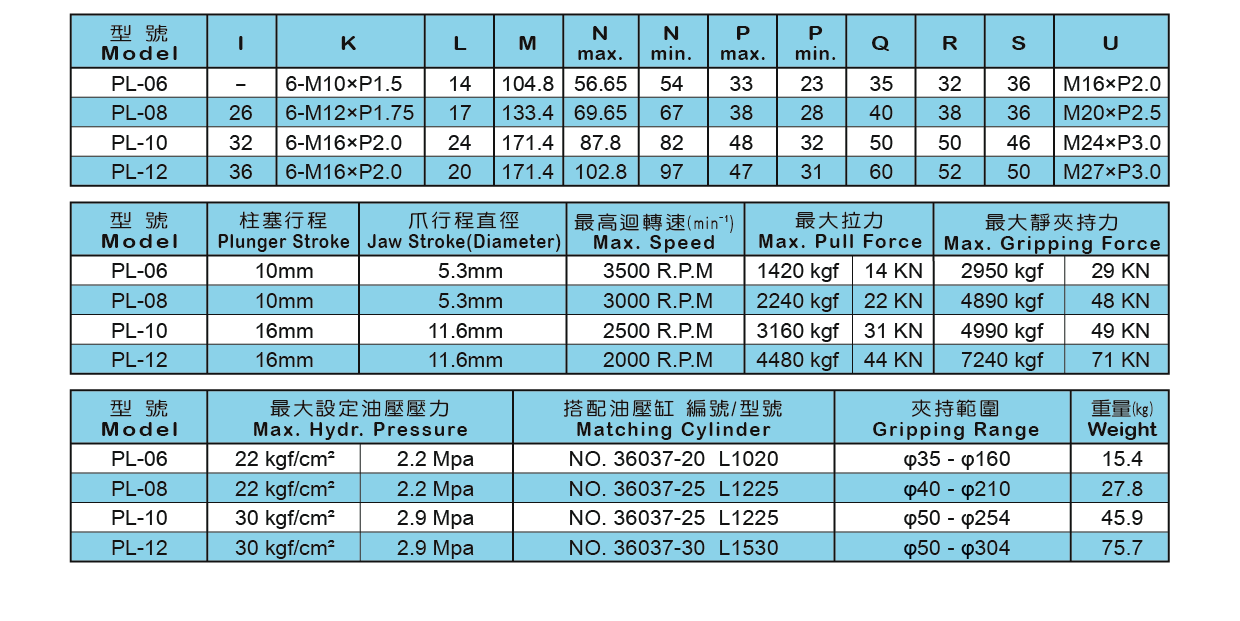

PL-06 PL-08 PL-10 PL-12
