Products SOLID CHUCK / ROTARY HYDRAULIC CYLINDERS

Detail

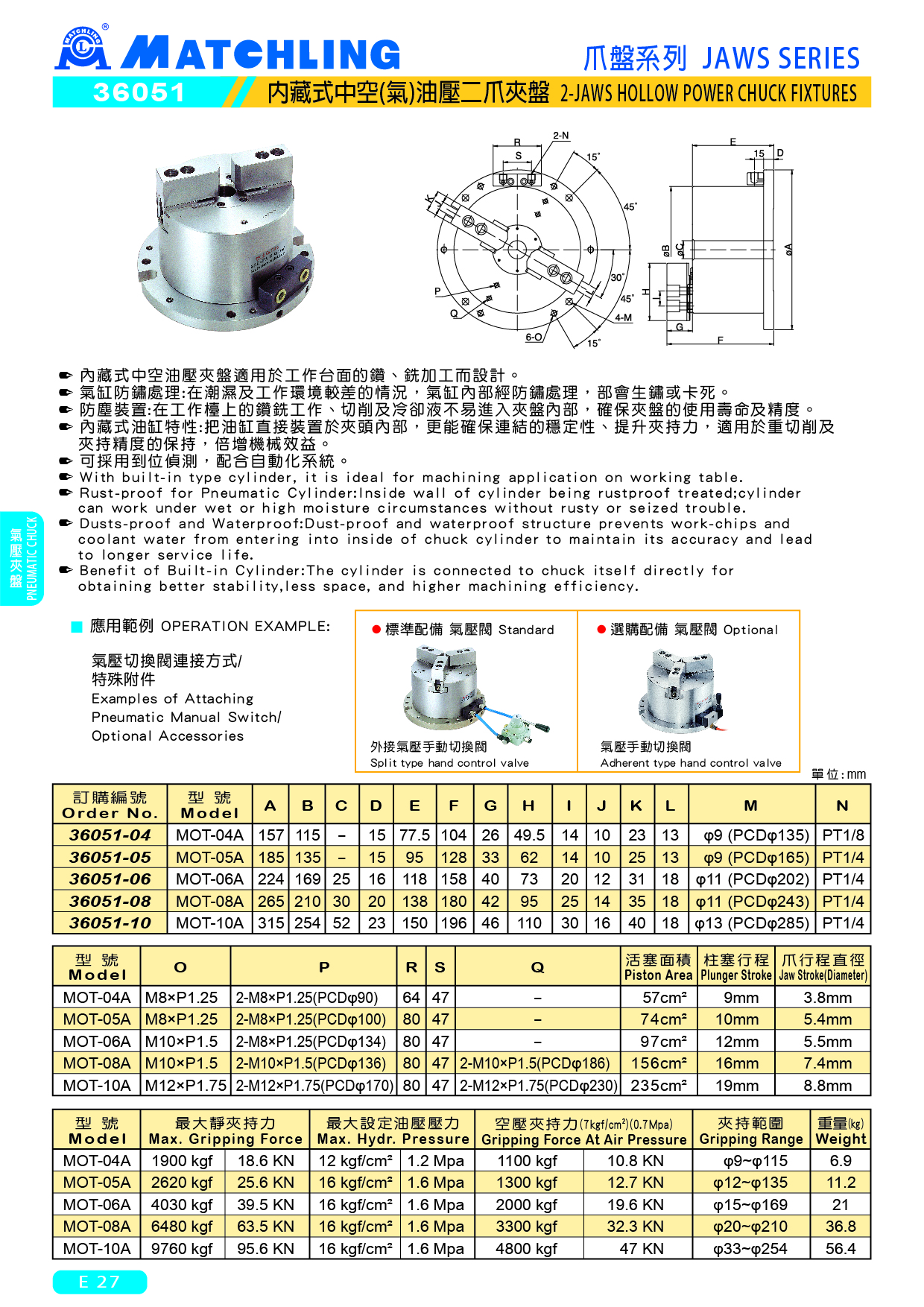

With built-in type cylinder, it is ideal for machining application on working table.
 Rust-proof for Pneumatic Cylinder:Inside wall of cylinder being rustproof treated;cylinder can work under wet or high moisture circumstances without rusty or seized trouble.
 Dusts-proof and Waterproof:Dust-proof and waterproof structure prevents work-chips and coolant water from entering into inside of chuck cylinder to maintain its accuracy and lead to longer service life.
 Benefit of Built-in Cylinder:The cylinder is connected to chuck itself directly for obtaining better stability,less space, and higher machining efficiency.

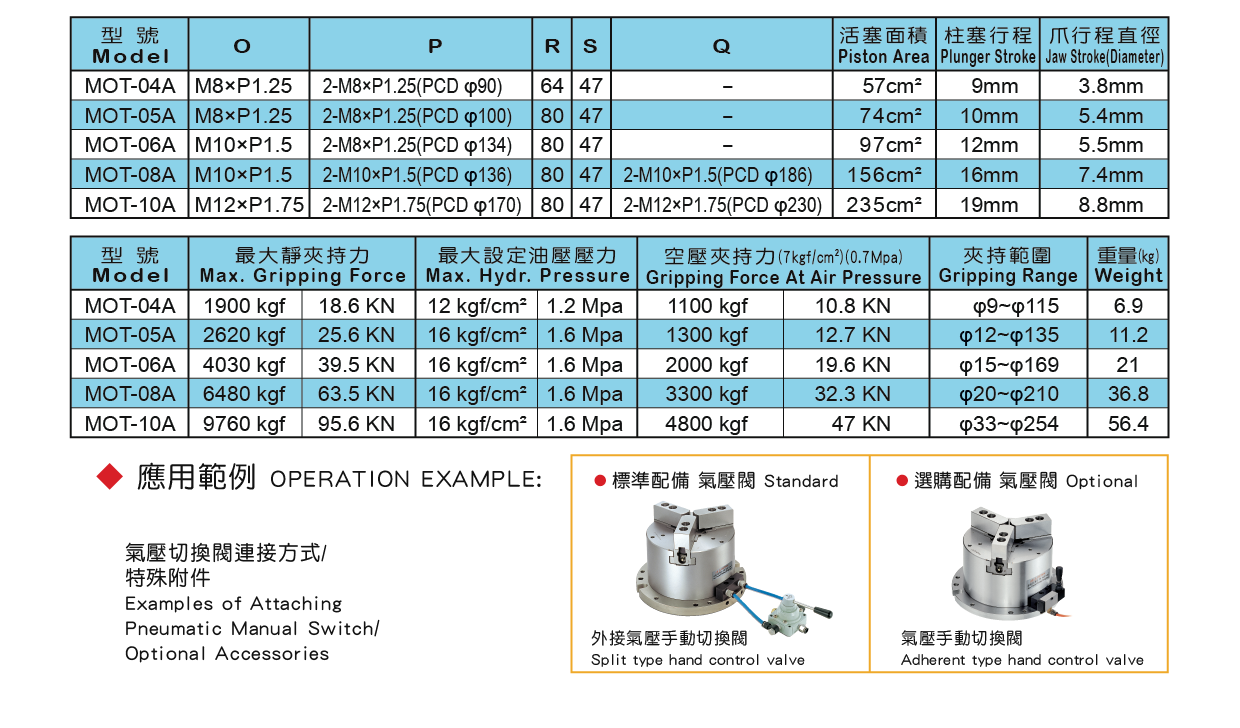

MOT-04A MOT-05A MOT-06A MOT-08A MOT-10A
