38020 SPINDLE

Item Model：MCL-80A MCL-80B
Download
Detail
● Suitable for KENT 618、818 grinding machine.
● 2 each Mechanics bearings are assembled in the front and back of spindle.
● Spindle Taper：1/5 (outer thread).
● HP：1/2HP-3HP. 2 Speed：3,600 ~ 6,000 R.P.M.
● Taper biased swing precision within 1.5um.

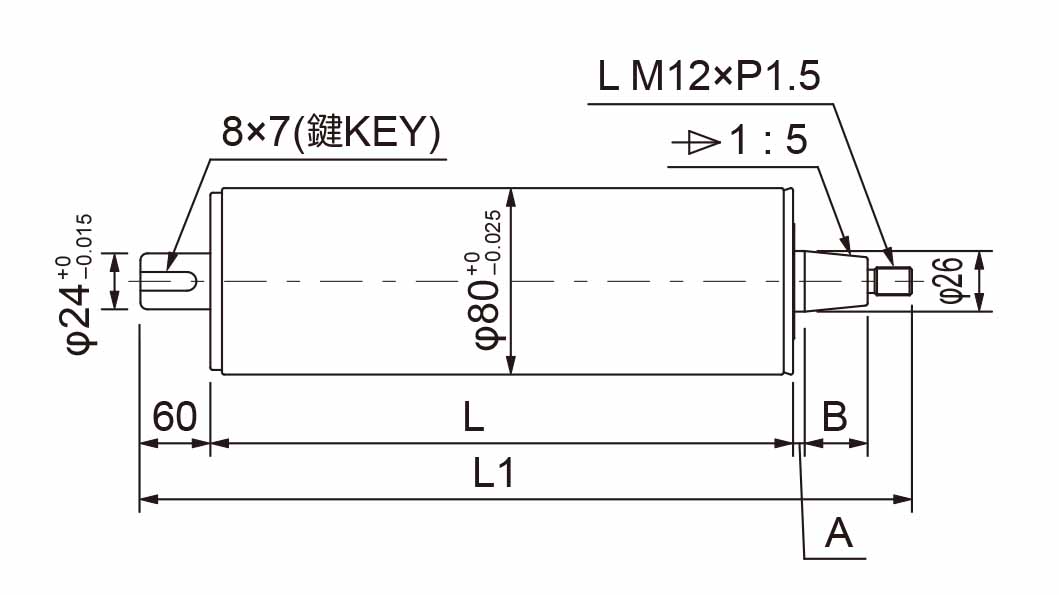

Unit : mm
Order No. Model L L1 A B
38020-05 MCL-80A 250 337 11 37
38020-10 MCL-80B 316 438 13 27
