● Manufactured by high-class material, hardness very high, and precision grinding.
● Outer diameter taper conform to DIN 806.

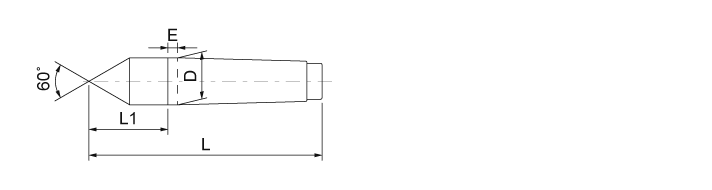

| Order No. | Model | D | L | L1 | E | Weight (kg) |
|---|---|---|---|---|---|---|
| 38430-05 | MT1 | 12.065 | 82 | 25 | 3.5 | 0.07 |
| 38430-10 | MT2 | 17.780 | 100 | 31 | 5 | 0.16 |
| 38430-15 | MT3 | 23.852 | 125 | 39 | 5 | 0.35 |
| 38430-20 | MT4 | 31.267 | 160 | 46 | 6.5 | 0.78 |
| 38430-25 | MT5 | 44.399 | 200 | 64 | 6.5 | 1.95 |
| 38430-30 | MT6 | 63.348 | 270 | 80 | 8 | 5.2 |
