Products SOLID CENTER / CARBON STEEL CENTER / CARBIDE CENTER

  1. LATHE / CYLINDRICAL GRINDER ACCESSORY SERIES
  2. SOLID CENTER / CARBON STEEL CENTER / CARBIDE CENTER

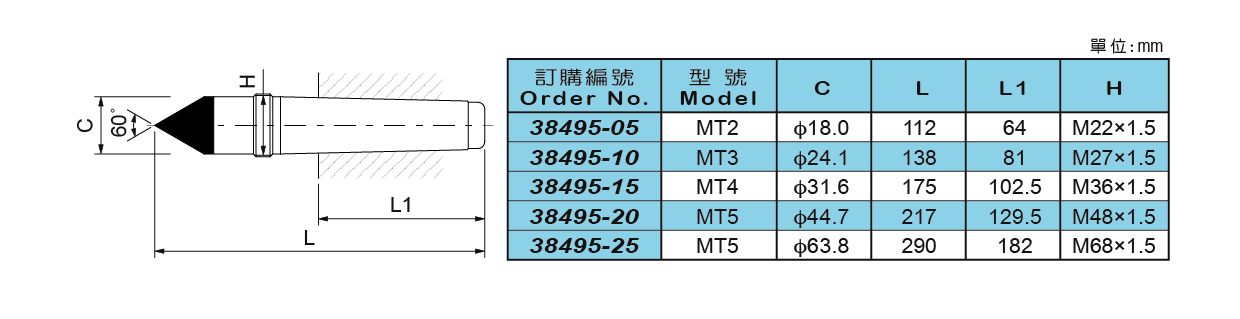

38495 SOLID CENTERS OF CARBIDE TIPPED

Download
Detail
● Standard Carbon wolfram in the front side.
● Material of carbon wolfram:K20, HRC75˚±2˚.
● The main body and the center of Carbon wolfram are grinded accurately.
● Threaded body, and can be used with nut of center.
● Outer diameter taper conform to DIN 806.


MT2 MT3 MT4 MT5
