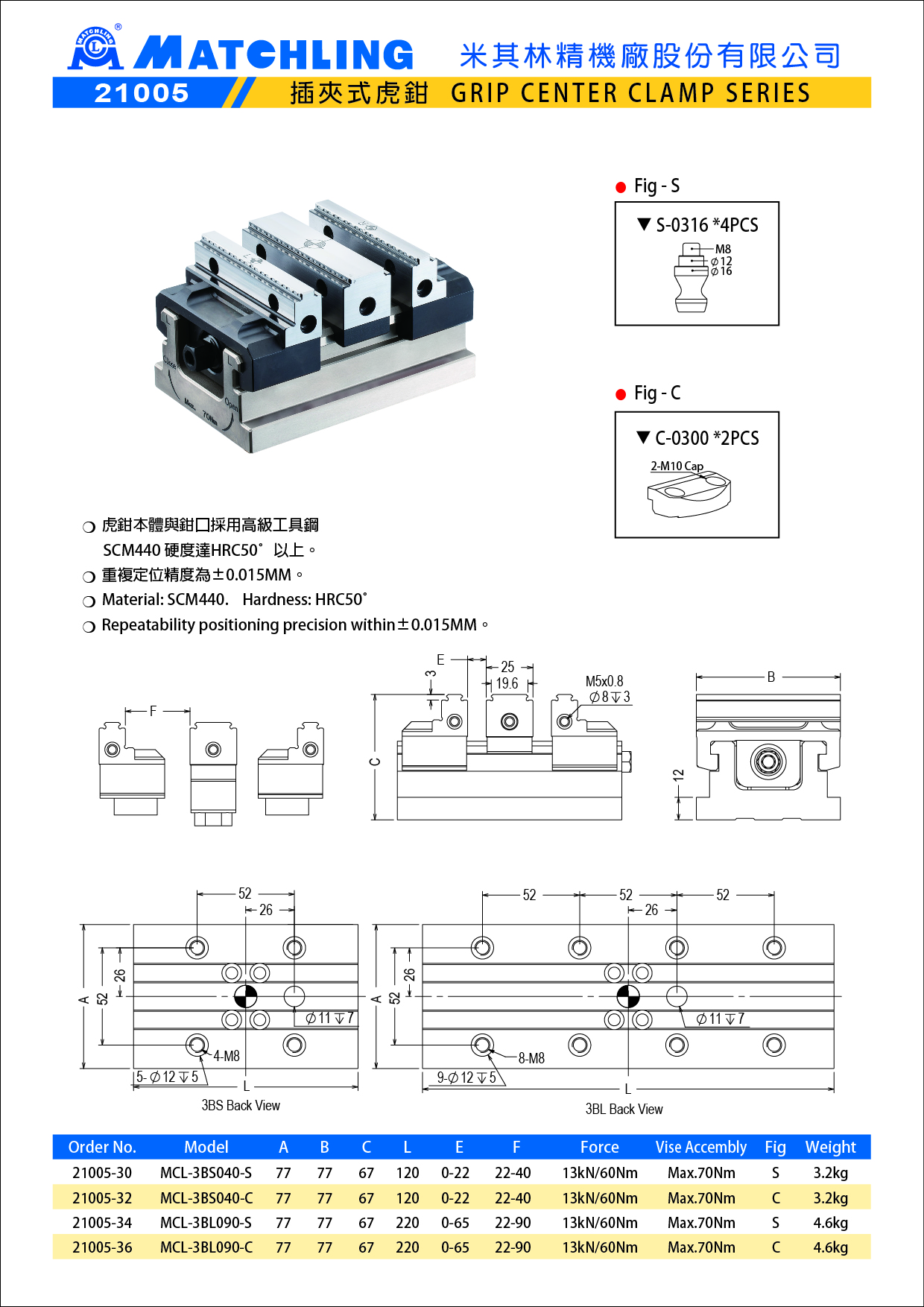

21005 GRIP CENTER CLAMP SERIES (3")

Item Model：MCL-3BS/MCL-3BL
Download
Detail
► Material: SCM440.  Hardness: HRC50°.
► Repeatability positioning precision within±0.015MM.

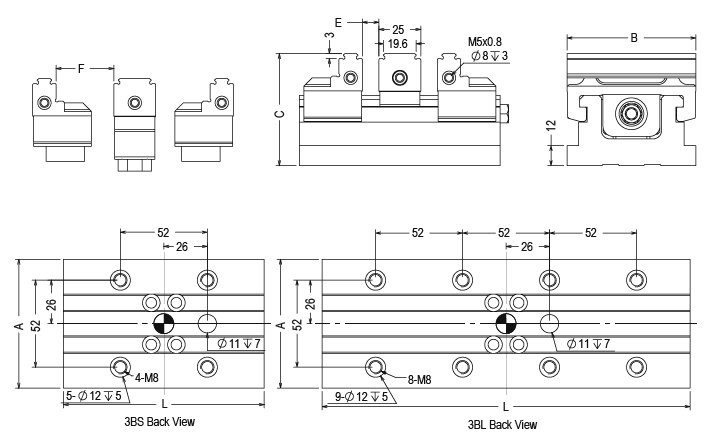

Order NO. Model A B C L E F Force Vise
Accembly		 Fig weight
(kg)
21005-30 MCL-3BS040-S 77 77 67 120 0-22 22-40 13kN/60Nm Max.70Nm S 3.2
21005-32 MCL-3BS040-C 77 77 67 120 0-22 22-40 13kN/60Nm Max.70Nm C 3.2
21005-34 MCL-3BL090-S 77 77 67 220 0-65 22-90 13kN/60Nm Max.70Nm S 4.6
21005-36 MCL-3BL090-C 77 77 67 220 0-65 22-90 13kN/60Nm Max.70Nm C 4.6
unit : mm
